Product Overview

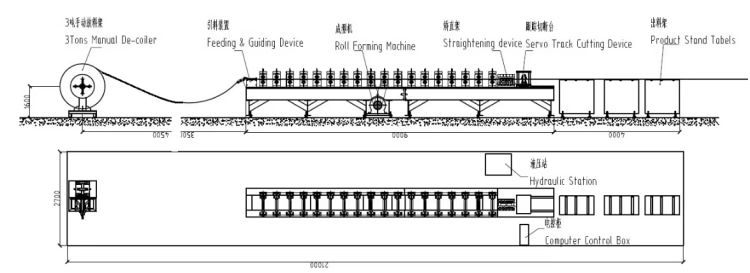

The Shelves Roll Forming Machine is a high-performance automated production equipment specifically designed for manufacturing precision storage shelf components. It integrates multiple production processes such as decoiling, feeding, punching, roll forming, and cutting, realizing continuous and efficient mass production. This machine is capable of producing various core shelf components, perfectly adapting to the production needs of industrial warehouses, logistics distribution centers, and commercial storage facilities. With its reliable operational performance, flexible customization capabilities, and consistent product quality, it has become a preferred choice for shelf manufacturers worldwide.
Core Technical Specifications
-
Raw material: Cold-rolled steel, Galvanized steel (optional stainless / color-coated steel)
-
Material thickness: 1.5 – 3.0 mm
-
Roller material: GCr15 (or optional Cr12) alloy steel, heat treated (quenched / hardened)
-
Roller hardness: HRC 58 – 62° (depending on heat treatment)
-
Number of forming stations: 16 – 28 stations (profile dependent)
-
Forming (line) speed: 5 – 15 m/min (depending on profile & configuration)
-
Main motor power: 15 – 22 kW (depending on model)
-
Cutting / Shearing system:Hydraulic cutting (or saw-cut); cutting blades made of heat-treated Cr12 / Cr12MoV
-
Control system: PLC control (Siemens / Panasonic / Delta optional) — supports automatic forming, punching, cutting, length & quantity control
-
Decoiler: Manual or hydraulic decoiler (capacity configurable, e.g. 3t–5t)
-
Material width: As per customer’s profile drawing / specification
-
Profile types: Upright rack columns / shelf upright posts / pallet rack uprights / warehouse shelving uprights
-
Power supply / Voltage: 380 V, 50 Hz, three-phase (customizable per customer requirement)
Global One-Stop Service
Pre-sales Consulting
We provide multilingual technical support, on-site factory layout planning, and personalized production solutions based on customers' product drawings, production scale, and regional market requirements.
Sales Support
Professional packaging is used to ensure the safe transportation of equipment. We provide complete customs clearance documents and arrange experienced engineers to carry out on-site installation, commissioning, and debugging. Systematic training on machine operation, maintenance, and quality control is also provided for customer teams.
After-sales Service
24/7 online technical assistance is available to solve customer problems in a timely manner. On-site maintenance support is provided within 48 hours in key regions. We offer a long-term warranty for core components, lifelong maintenance guidance, and free software upgrade services to ensure the continuous and stable operation of the equipment.
Typical Applications
-
Production of upright rack columns for heavy-duty industrial storage shelves
-
Manufacturing of shelf upright posts for commercial retail warehouses
-
Customized production of pallet rack uprights for logistics distribution centers
-
Production of warehouse shelving uprights for special environments such as cold-chain storage and chemical storage
