The stainless-steel-z-profile-roll-forming-machine is professionally designed for the continuous production of Z-shaped profiles widely used in solar mounting systems and lightweight steel structures. These Z profiles serve as essential components for mounting, reinforcing, supporting, and connecting structural elements in photovoltaic power plants, energy facilities, and industrial construction projects. With high dimensional accuracy and strong mechanical performance, the finished profiles meet the strict requirements of outdoor and long-term applications.
| Item | Specification | Optional Configuration |
|---|---|---|
| Machinable Material | A) Hot-rolled And Cold Rolled Steel | Thickness(MM): 1.5-2.5 or up to 3mm |
| B) Hot-dip Galvanized Sheet | ||
| C) Pre-Galvanized Steel | ||
| D) Mill (Plain/Black) Steel | ||
| Yield strength | 235 – 345 Mpa | |
| Tensil stress | G250 Mpa-G350 Mpa | |
| Decoiler | Manual Decoiler | * Hydraulic Decoiler (Optional) |
| Punching System： | Hydraulic Punching Station (Individual) | * Punching Press (Optional) |
| Forming Station | 15 – 17 | * According To Your Profile Drawings |
| Main Machine Motor Brand | Reducer + Motor | * Servo Motor (Optional) |
| Driving System | Chain Drive | * Gearbox Drive (Optional) |
| Machine Structure | Wall Panel | * Forged Iron station (Optional) |
| Line Forming Speed | 0-15 (M/MIN) | * According To Final Configuration |
| Rollers’ Material | 45# | * GCr 15 (Optional) |
| Cutting System | Post-cutting, Machine Stop To Cut | * Tracking Servo Cutter (Optional) |
| Frequency Changer Brand | Yaskawa | |
| PLC Brand | Panasonic | |
| Power Supply | 380V 50Hz 3ph | * Or According To Your Requirement |
| Machine Color | Industrial Blue | * Or According To Your Requirement |

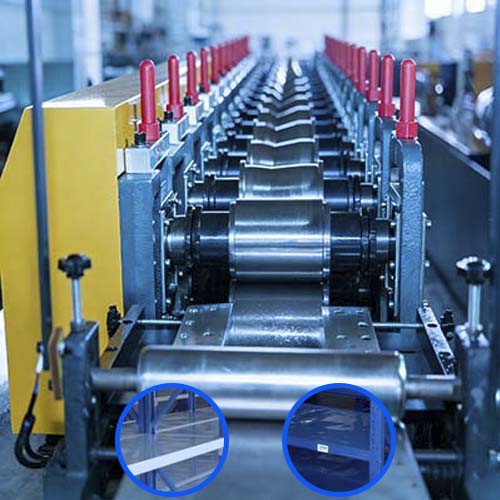

This roll forming production line adopts an automated and efficient manufacturing process, capable of handling stainless steel and other metal materials with excellent corrosion resistance. Through a series of precision-engineered roll forming stations, metal strips are gradually shaped into uniform Z-section profiles with smooth surfaces and consistent cross-sections. The machine supports material thicknesses from 1.5 mm to 2.5 mm, with an optional configuration allowing thicknesses up to 3.0 mm, ensuring flexibility for different project demands.

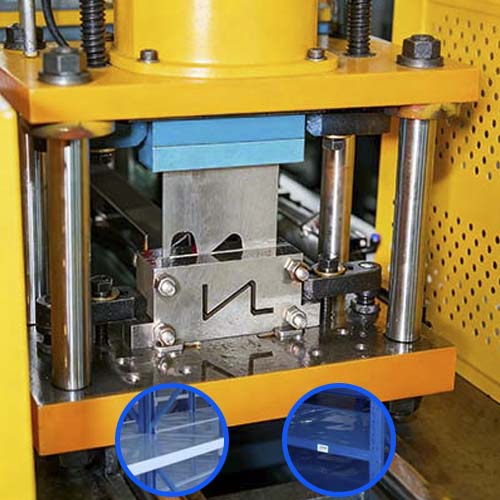

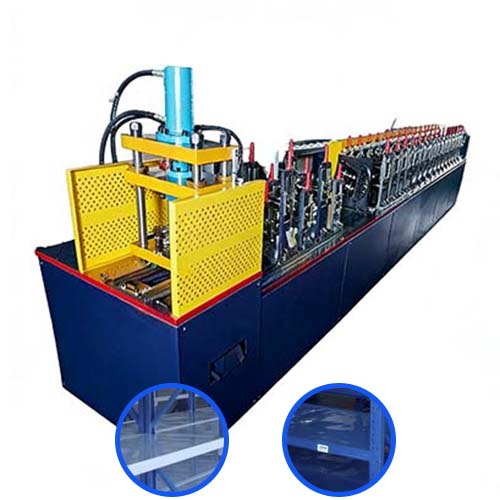

The complete production line typically consists of a hydraulic uncoiler, servo-controlled feeding system, high-accuracy punching unit, roll forming mill, and servo-driven cutting device, all integrated with a stable electrical and hydraulic control system. Operators can easily adjust profile dimensions, punching patterns, and cutting lengths through the PLC touch screen, enabling fast changeovers and efficient production management. Automatic operation reduces labor intensity while maintaining high output efficiency and repeatable quality.
Designed with a robust mechanical structure and premium components, the stainless-steel-z-profile-roll-forming-machine delivers stable performance during long-term continuous operation. It is an ideal solution for manufacturers supplying solar mounting structures, energy support systems, and lightweight steel frameworks. In addition to reliable equipment, we offer comprehensive technical support and responsive after-sales service, helping customers achieve efficient production and long-term operational success. Feel free to contact us for technical consultation or customized roll forming solutions.
