Product Overview

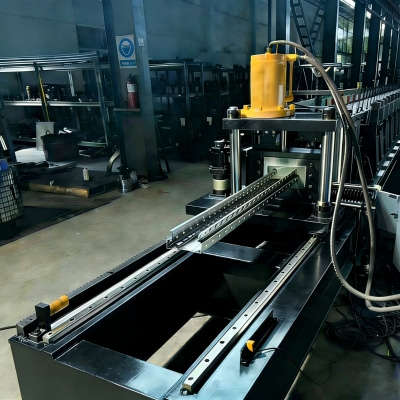

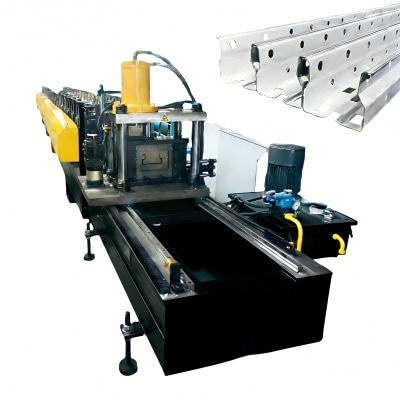

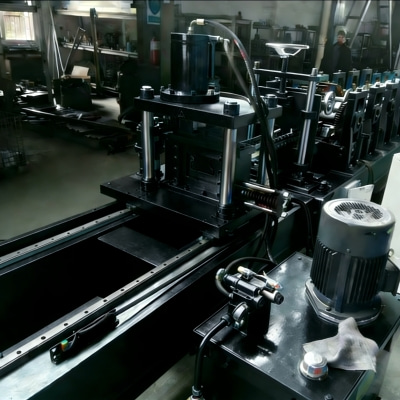

The Punch Mould For Rack Upright is a high-precision matching component tailored for rack upright roll forming machines. It is specially designed for punching processes of shelf uprights, featuring excellent dimensional accuracy and strong compatibility. Made of premium alloy steel and processed by sophisticated heat treatment, this punch mould ensures stable punching quality and long service life, perfectly matching the mass production needs of rack manufacturers for high-quality uprights.
Core Technical Specifications
-
Applicable raw material: Cold-rolled steel, Galvanized steel (optional stainless / color-coated steel)
-
Applicable material thickness: 1.5 – 3.0 mm
-
Mould material: GCr15 (or optional Cr12) alloy steel, heat treated (quenched / hardened)
-
Mould hardness: HRC 58 – 62° (depending on heat treatment)
-
Matching forming stations: 16 – 28 stations (profile dependent)
-
Adaptable forming speed: 5 – 15 m/min (depending on profile & configuration)
-
Matching control system: PLC control (Siemens / Panasonic / Delta optional) — supports synchronous punching with automatic forming & cutting
-

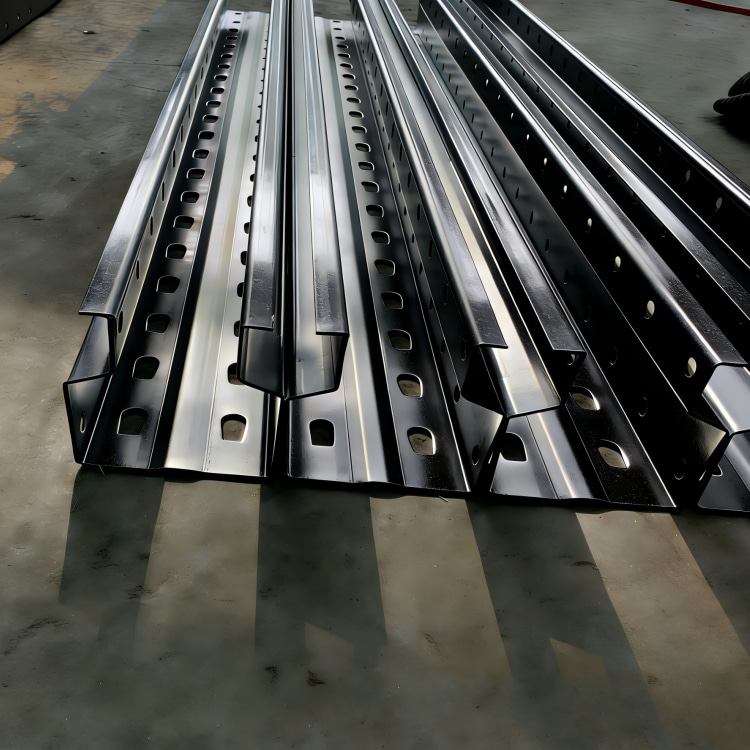

Applicable profile types: Upright rack columns / shelf upright posts / pallet rack uprights / warehouse shelving uprights
-
Customization scope: As per customer’s profile drawing / specification (punching position, size, quantity)
-
Matching power supply: Adaptable to 380 V, 50 Hz, three-phase (customizable per main machine requirement)
Key Product Advantages
1. High-Precision Punching: Adopting premium heat-treated alloy steel and precision machining technology, the mould ensures punching tolerance within ±0.2mm, guaranteeing the assembly accuracy of shelf uprights.
2. Strong Compatibility: Perfectly matches mainstream rack upright roll forming machines, adaptable to different forming station configurations and production speeds, reducing replacement and adjustment costs for customers.
3. Intelligent Synchronous Operation: Seamlessly connects with PLC control system of the main machine, realizing synchronous punching with forming and cutting processes, ensuring production continuity and efficiency.
Quality & Safety Assurance
All punch moulds undergo rigorous quality inspection and performance testing, including hardness testing, precision measurement, and fatigue test, complying with international industrial standards and holding CE, ISO9001:2015 certifications. The stable structural design avoids mould deformation during high-speed operation, ensuring production safety.
Global Service Support
We provide multilingual pre-sales consultation (matching main machine model confirmation), customized mould design based on customer drawings, on-site installation and debugging guidance, and long-term after-sales maintenance services. 24/7 online technical support is available to solve mould use problems in a timely manner.
Typical Applications
Widely used in the punching process of shelf uprights for industrial storage racks, large logistics distribution center racks, commercial supermarket racks, and cold-chain storage racks, matching various high-precision roll forming production lines.
