Product Overview

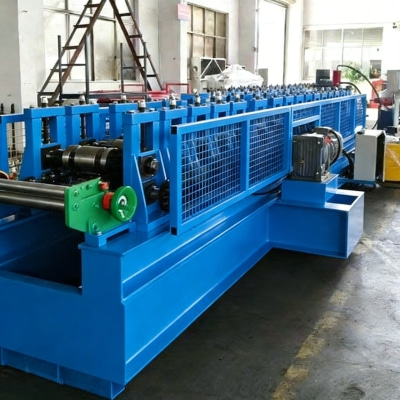

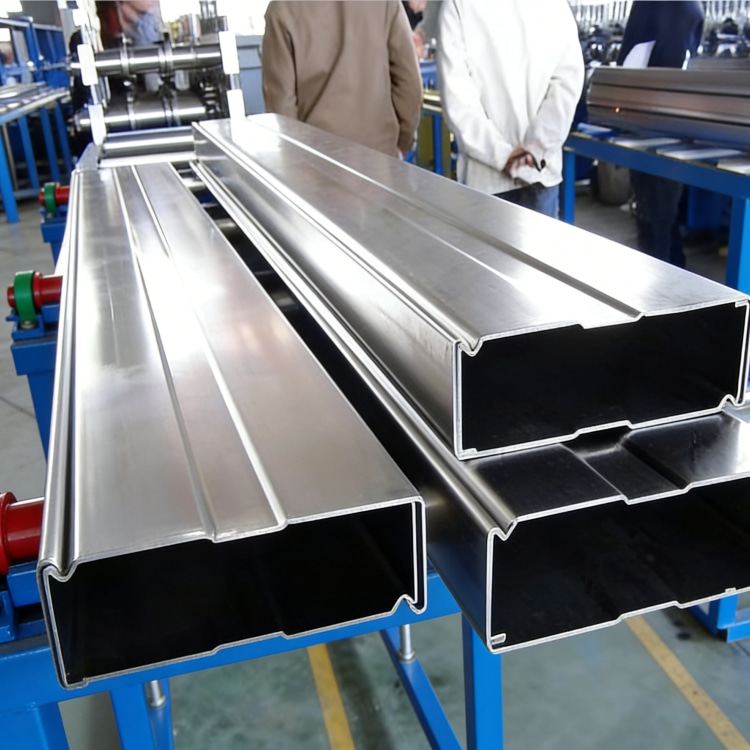

The Rack Partition Beam Roll Forming Machine is a specialized automated production solution engineered for manufacturing high-precision rack partition beam components. As a core part of storage rack systems, partition beams are essential for achieving layered storage, optimizing space utilization, and ensuring the stability of stored goods. This machine integrates advanced roll forming technology, stable power transmission, and intelligent control systems, enabling efficient and consistent production of high-quality partition beams. It has become a trusted choice for global rack manufacturers due to its reliable performance, strong adaptability, and user-friendly operation.
Core Technical Specifications
-
Suitable Plate Material: thickness 1.2-1.5mm, Galvanized steel or blank steel, compatible with mainstream raw materials for rack partition beams
-
Working Speed: about 8-12 meters / min, balancing high production efficiency with precise forming quality
-

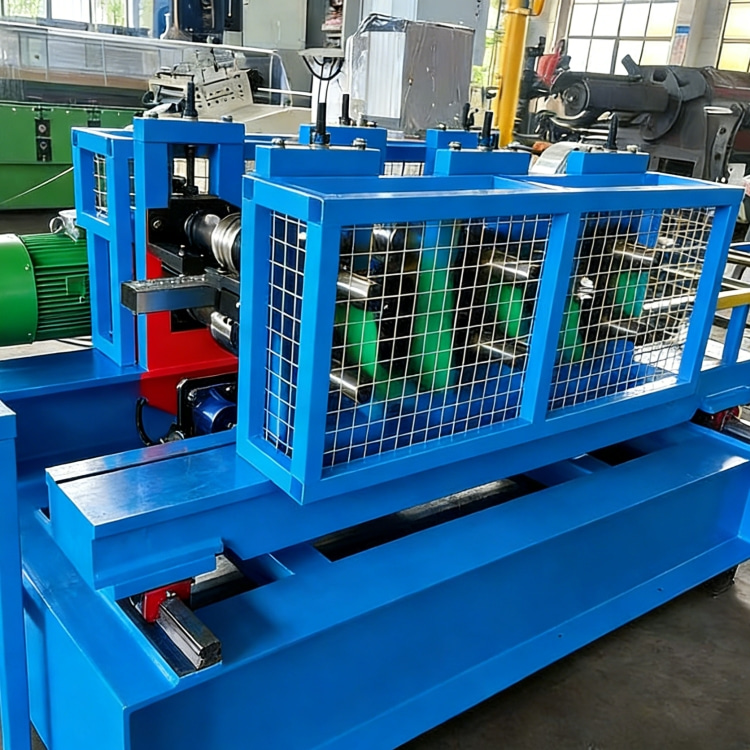

Forming Steps: about 12 stations, ensuring uniform stress distribution during the forming process, resulting in smooth surfaces and accurate dimensions of finished partition beams
-
Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome, boasting excellent wear resistance and deformation resistance, effectively extending the equipment's service life
-
Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining, providing robust load-bearing capacity and stable transmission performance for consistent operation
-
Driven system: Chain drive, ensuring steady power transfer, low operational noise, and reliable long-term use
-
Main Power with reducer: 5.5KW WH Chinese Famous, delivering sufficient and stable power to support continuous mass production
-

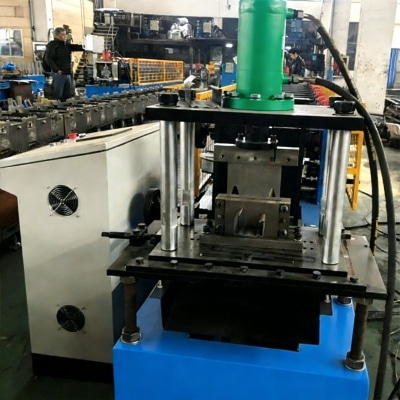

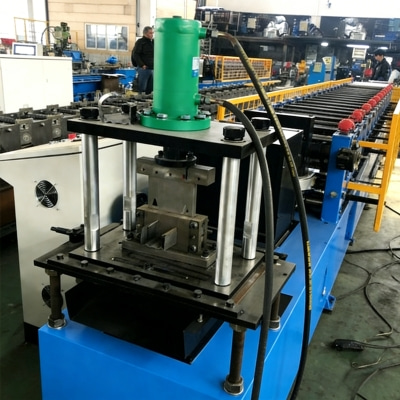

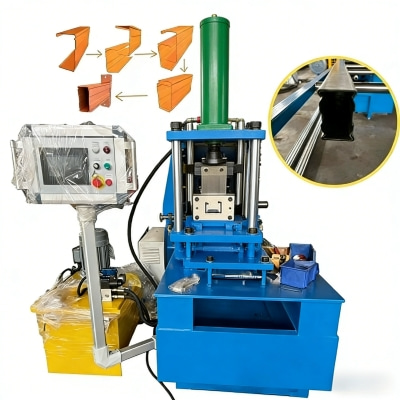

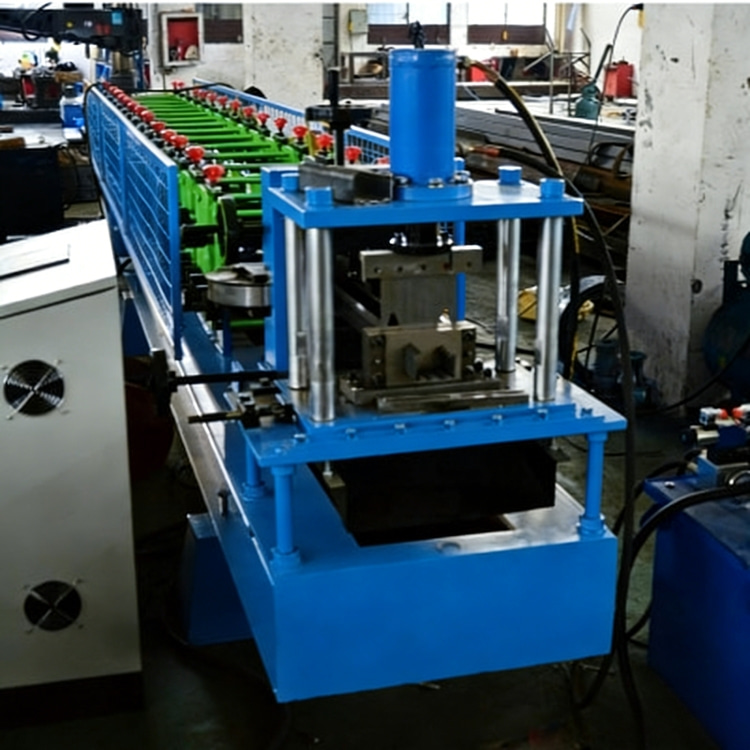

Cutting: hydraulic cutting, guaranteeing smooth cutting surfaces, high length precision, and no burrs on finished products
-
Control System: The whole machine is controlled by PLC, equipped with Siemens PLC (Japan) supporting English and Chinese Language, realizing intelligent operation and real-time production monitoring
-
Encoder: Omron (Japan), ensuring accurate control of forming positions and working speeds
-
Electric parts: Schneider, safeguarding the safety, stability, and long service life of the electrical system
Global One-Stop Service
Pre-sales Consulting
We provide multilingual technical support (English, German, Russian, Spanish, Arabic), on-site factory layout planning, and customized production solutions based on customers' specific product specifications, material characteristics, and production scales.
Sales Support
The equipment is packaged professionally to prevent damage during transportation. We provide complete industrial equipment customs clearance documents and arrange professional engineers for on-site installation, commissioning, and debugging. Systematic training on equipment operation, maintenance, and quality control is provided for customer teams to ensure proficient use.
After-sales Service
24/7 online technical assistance is available to resolve customer issues promptly. On-site maintenance support is provided within 48 hours in key regions. We offer a long-term warranty for core components, lifelong maintenance guidance, and free software upgrade services to ensure the continuous and stable operation of the equipment.
Certifications
CE | ISO9001:2015 | SGS | TUV Rheinland
Typical Applications
-
Production of partition beams for commercial retail shelves and supermarket storage racks
-
Manufacturing of partition beams for industrial warehouse storage systems
-
Customized production of partition beams for office and household storage shelves
-
Production of partition beams for intelligent logistics distribution center storage racks
