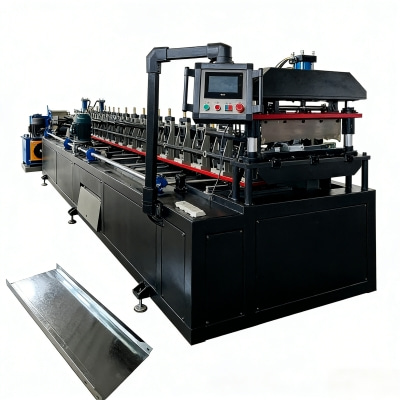

Product Overview
This intelligent and high-performance machine is tailored for high-standard shelf panel production. Equipped with advanced PLC control and high-quality components, it realizes precise, efficient and stable production, fitting modern manufacturing needs.
|
Thickness
|
0.6mm(as customer's request)
|
|

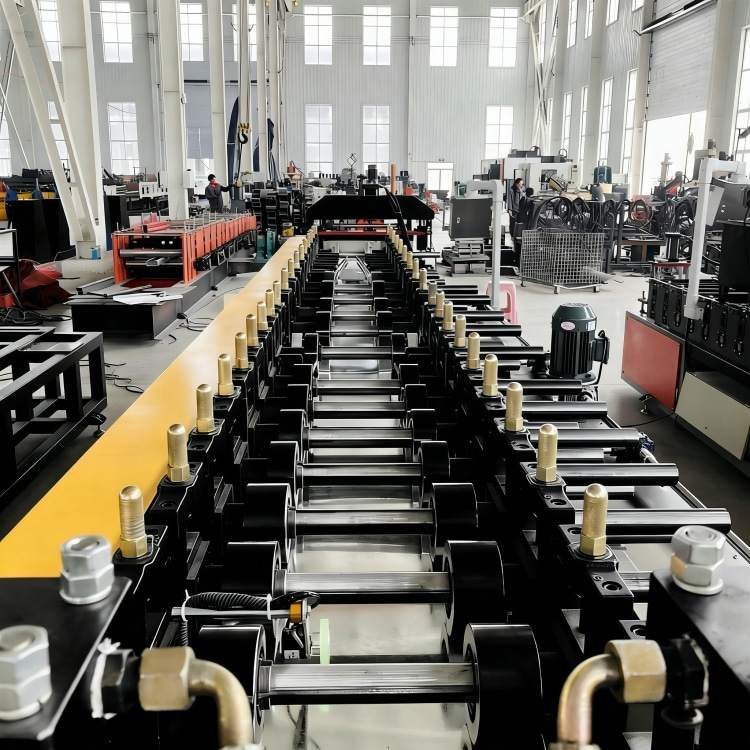

Roller station
|
16-18 rows(As your requirement)
|
|
Diameter of shaft
|
70mm solid shaft
|
|
Material of rollers
|
45# steel,hard chrome plated on the surface
|
|
Machine body frame
|
Metal steel welded
|
|

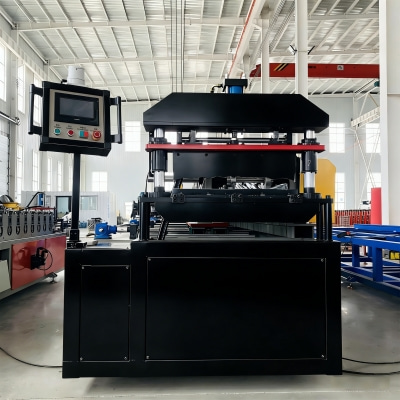

Cutter
|
Gr12mov material,no scratches,no deformation
|
|
Motor Power
|
5.5kw
|
|

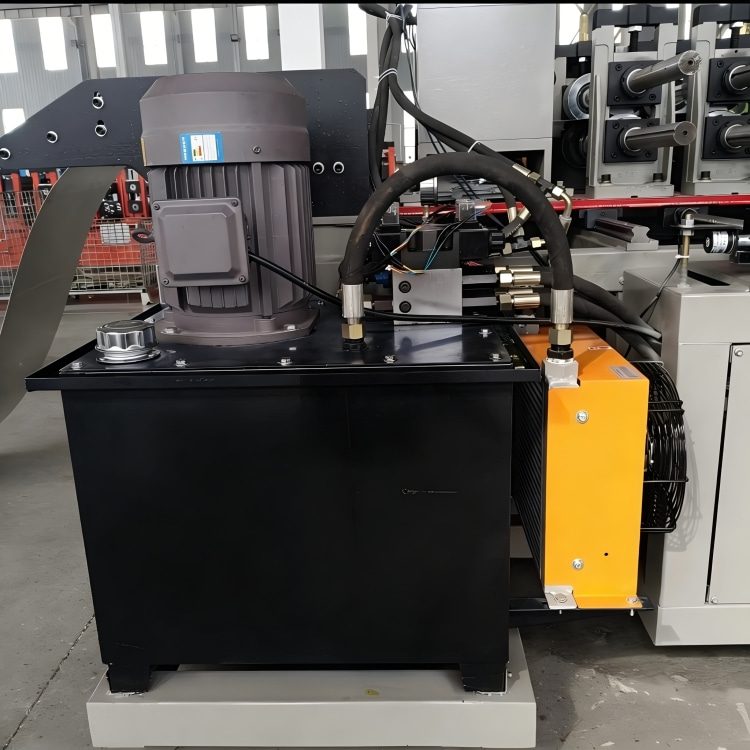

Hydraulic system power
|
5.5kw
|
|
Voltage
|
380V 50Hz 3Phase(As your requirement)
|
|

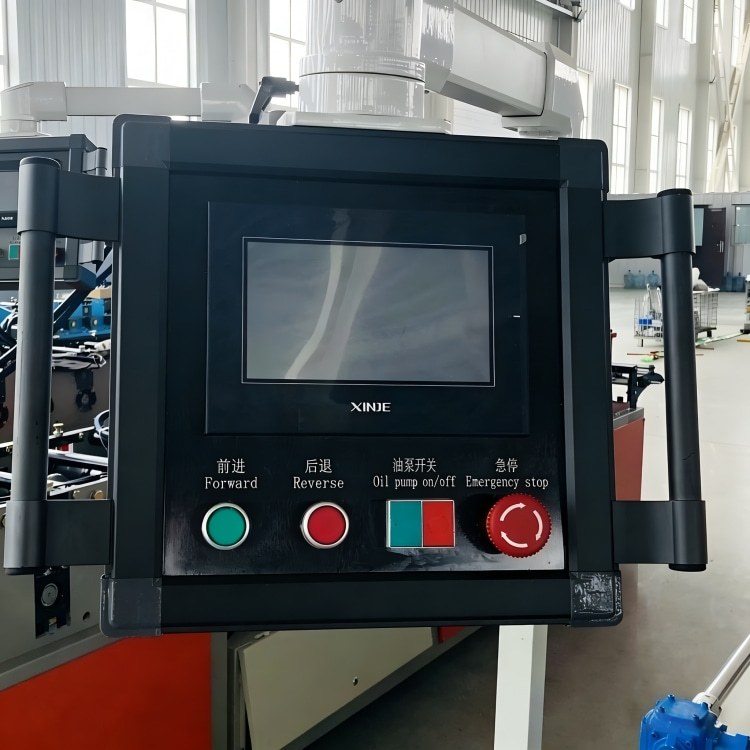

Control system
|
PLC
|
|
Forming Speed
|
8-20m/min(customized)
|
Core Technical Specifications
Thickness: 0.6mm (as customer's request); Roller station:16-18 rows (As your requirement)
Diameter of shaft: 70mm solid shaft; Material of rollers: 45# steel, hard chrome plated on the surface
Machine body frame: Metal steel welded; Cutter: Gr12mov material, no scratches, no deformation
Motor Power: 5.5kw; Hydraulic system power: 5.5kw
Voltage: 380V 50Hz 3Phase (As your requirement); Control system: PLC
Forming Speed: 8-20m/min (customized)
Key Product Advantages
1. Intelligent Precision: PLC control system enables precise parameter adjustment, ensuring consistent forming quality and reducing product defects.
2. High-Quality Output: Hard chrome plated 45# steel rollers and Gr12mov cutter produce smooth, scratch-free shelf panels with excellent flatness and durability.
3. Flexible Efficiency: 8-20m/min customizable forming speed and 16-18 roller stations adapt to different production scales, balancing speed and quality.
Quality & Safety Assurance
Compliant with ISO9001:2015 standards, the machine features a sturdy structure, reliable hydraulic system and high-quality components, ensuring safe and stable long-term operation.
Global Service Support
Provide professional technical consultation, on-site debugging, operator training and 24/7 after-sales support, helping customers achieve efficient and high-quality production.
Typical Applications
Ideal for producing high-standard shelf panels for intelligent warehouses, high-end commercial facilities, food cold-chain racks and eco-friendly storage systems.
