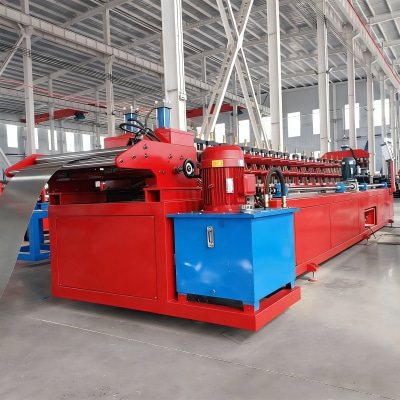

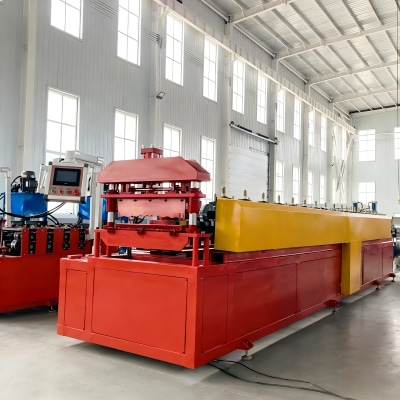

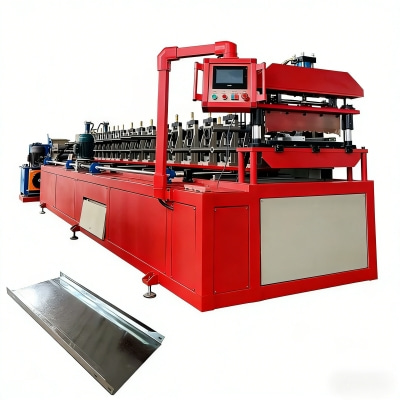

Product Overview
This eco-friendly and durable rack roll forming machine is designed for sustainable shelf panel production, combining energy-saving performance with high-quality output, suitable for enterprises pursuing green and efficient manufacturing.
Core Technical Specifications
Thickness: 0.6mm (as customer's request); Roller station: 16-18 rows (As your requirement)
Diameter of shaft: 70mm solid shaft; Material of rollers: 45# steel, hard chrome plated on the surface
Machine body frame: Metal steel welded; Cutter: Gr12mov material, no scratches, no deformation
Motor Power: 5.5kw; Hydraulic system power:5.5kw
Voltage: 380V 50Hz 3Phase (As your requirement); Control system: PLC
Forming Speed: 8-20m/min (customized)
|
Thickness
|
0.6mm(as customer's request)
|
|

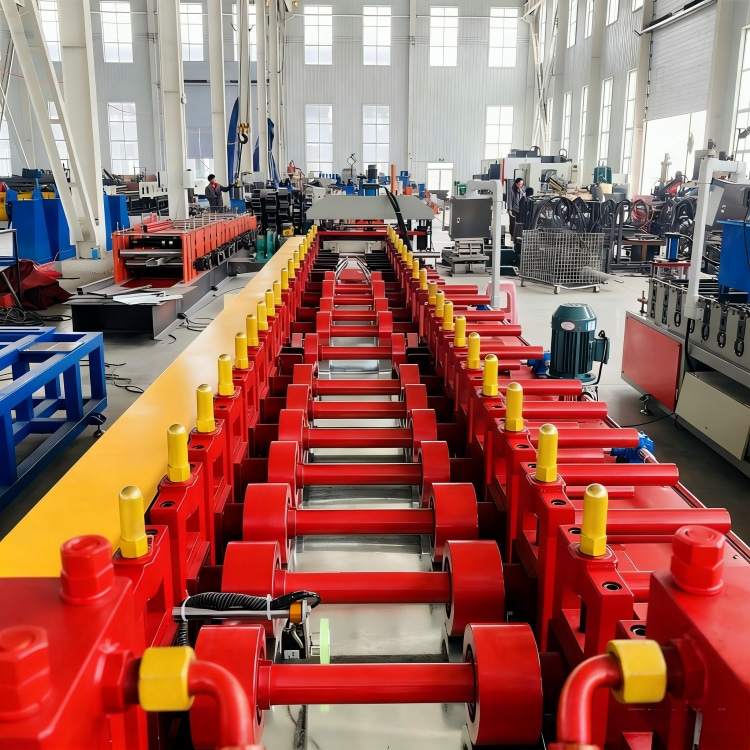

Roller station
|
16-18 rows(As your requirement)
|
|
Diameter of shaft
|
70mm solid shaft
|
|
Material of rollers
|
45# steel,hard chrome plated on the surface
|
|
Machine body frame
|
Metal steel welded
|
|

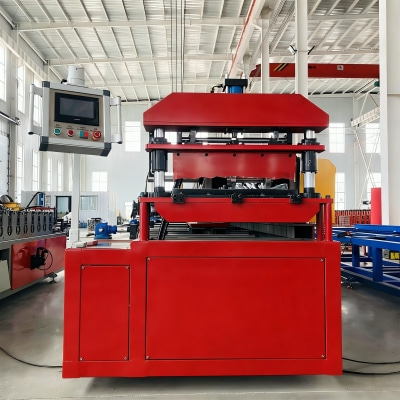

Cutter
|
Gr12mov material,no scratches,no deformation
|
|
Motor Power
|
5.5kw
|
|

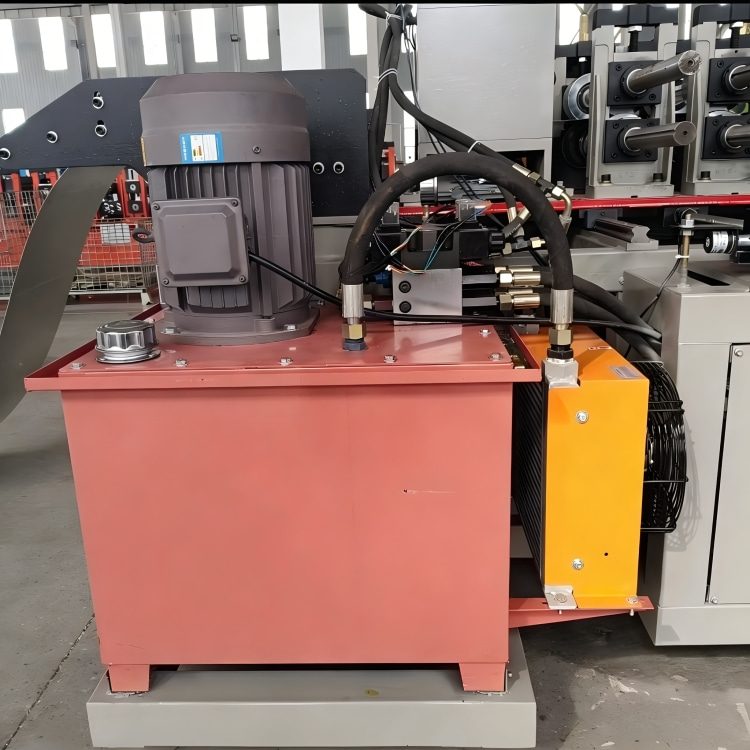

Hydraulic system power
|
5.5kw
|
|
Voltage
|
380V 50Hz 3Phase(As your requirement)
|
|

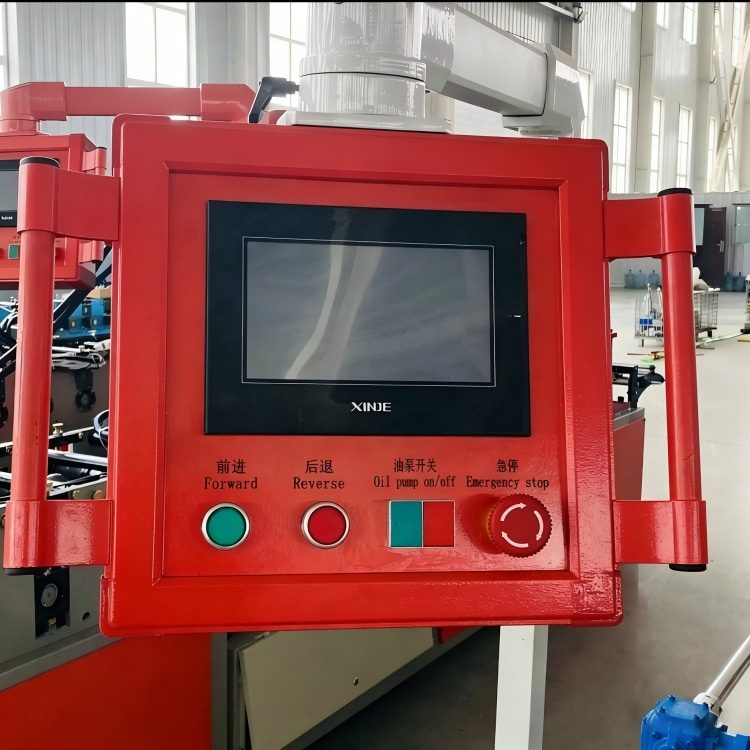

Control system
|
PLC
|
|
Forming Speed
|
8-20m/min(customized)
|
Key Product Advantages
1. Eco-Energy Saving: 5.5kw motor and optimized hydraulic system reduce energy consumption, complying with green manufacturing standards and lowering operational costs.
2. Long-Lasting Durability: Hard chrome plated 45# steel rollers and Gr12mov cutter ensure wear resistance and no deformation, extending machine service life with minimal maintenance.
3. Versatile Adaptability: Customizable forming speed and roller stations, compatible with diverse shelf panel needs for both commercial and industrial green storage scenarios.
Quality & Safety Assurance
Compliant with ISO9001:2015 and environmental standards, the machine features a sturdy welded frame and reliable components, ensuring safe, eco-friendly and consistent production.
Global Service Support
Provide green manufacturing consultation, on-site installation, operator training and 24/7 after-sales support, supporting customers’ sustainable production goals.
Typical Applications
Ideal for producing eco-friendly shelf panels for green industrial parks, eco-logistics centers, high-end green commercial facilities and energy-saving storage systems.
