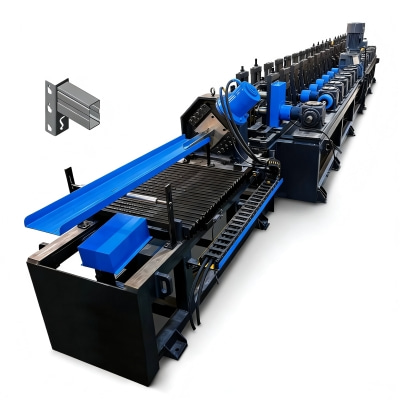

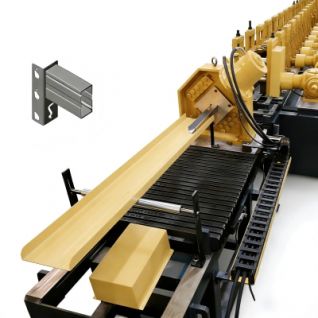

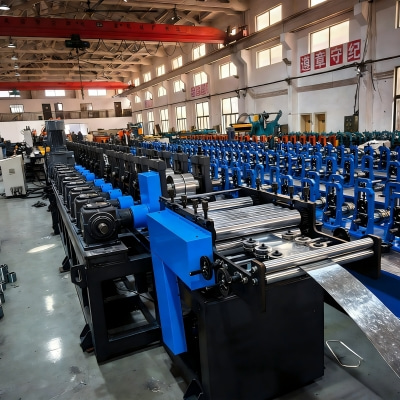

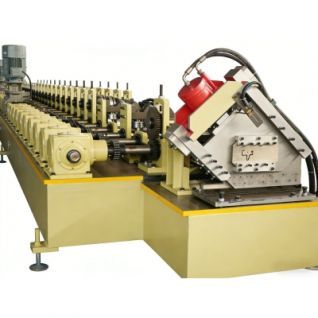

Automatic Box Beam Roll Forming Line Rack Roll Forming Machine

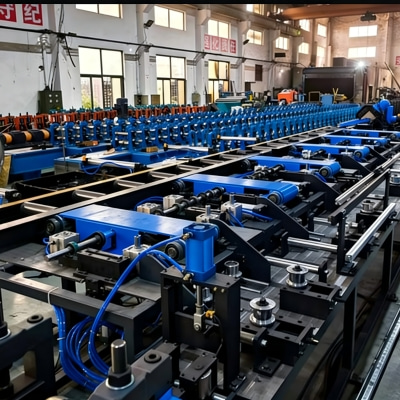

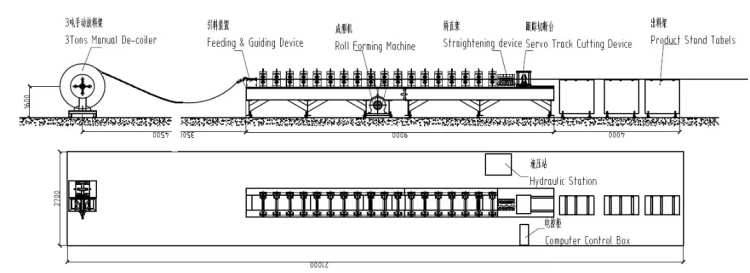

Automatic Box Beam Roll Forming Line

Machinable Material

A) Galvanized Coil

Thickness(MM):1.5-3.0 as per customer

B) Cold/Hot-rolled Steel

C) Carbon Steel

Yield Strength

250 - 350 Mpa

Tensil Stress

350 Mpa-500 Mpa

Nominal Forming Speed(M/Min)

10-20

* Or According To Your Requirment

Forming Station

18-20

* According To Your Profile Drawings

Decoiler

Manual Decoiler

* Hydraulic Decoiler (Optional)

Driving System

Chain Drive

* Gearbox Drive (Optional)

Machine Structure

Steel Plates Welded

* Cast Iron Stands (Optional)

Rollers’ Material

GCr 15

* Cr12Mov (Optional)

Cutting System

Hydraulic Cut

* Saw Cut (Optional)

Boxing Unit

By Chain

* By Gearbox (Optional)

Welding Efficiency

Specification 50*100±25 seconds/pcs,
Specification 50*120-140±30 seconds/pcs,
Specification 50*160±35 seconds/pcs (Except for beams with unilateral error of >1.5mm)

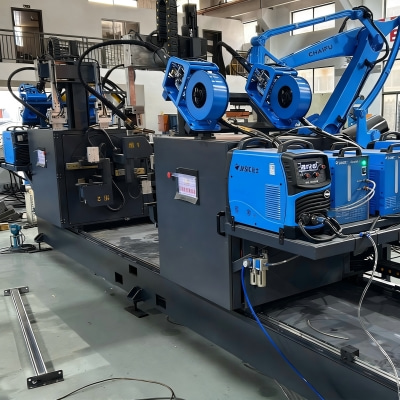

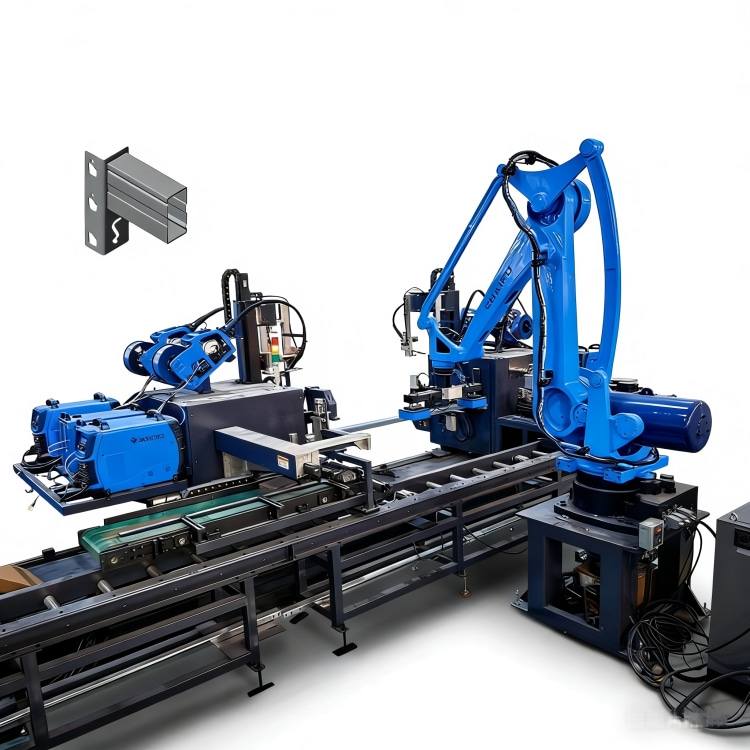

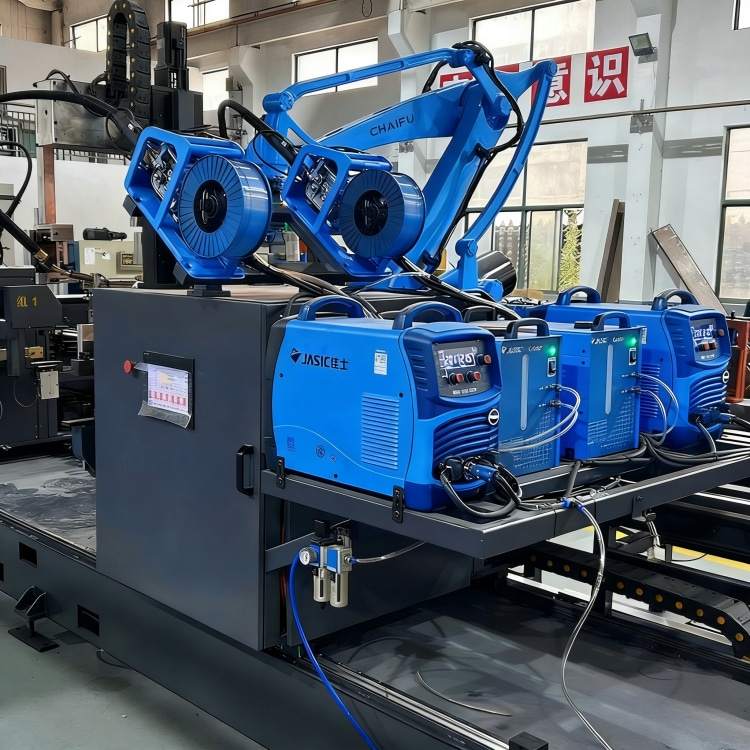

Welding &Stacking Process

Stack the hanging pieces in order on the automatic hanging piece feeding platform,then input the signal,the machine starts to automatically load the hanging pieces,and at the same time,the robot automatically grabs the crossbeam to the specified position of the machine platform,starts welding,first welds the two sides,rotates 90 degrees and then welds the two sides to complete the welding,rotates to another station,and the robot takes the material to the finished product stacking,and the robot takes the material again,and the above actions are repeated. All the above actions are controlled and operated by the dedicated system for the crossbeam automatic line

Machine Color

Industrial Blue

* Or According To Your Requirment
