Product Overview

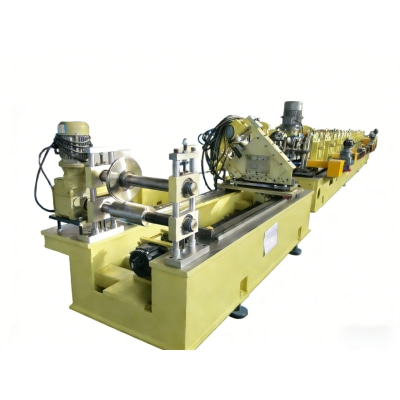

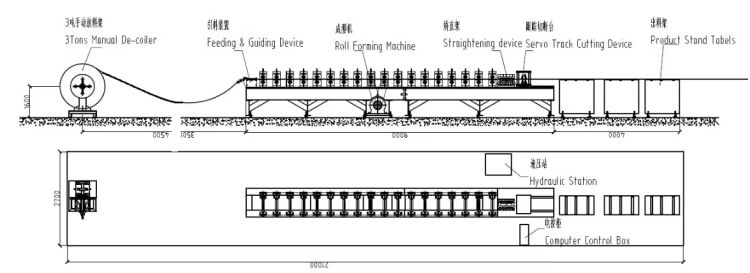

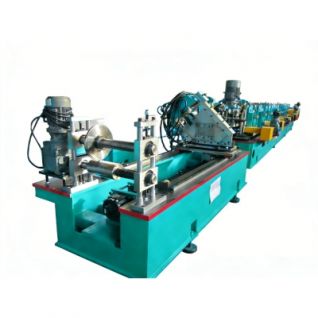

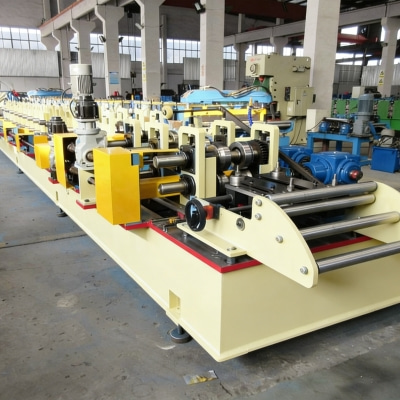

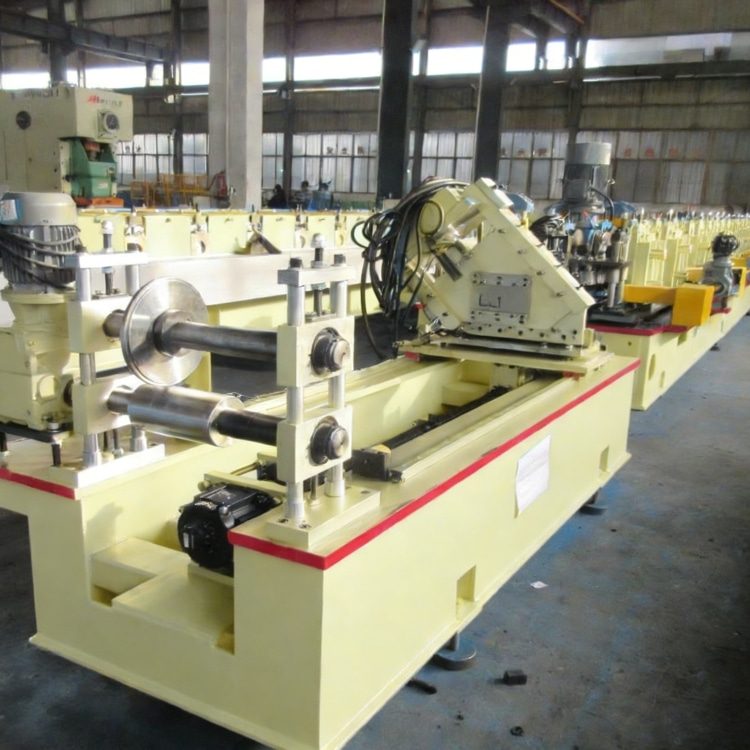

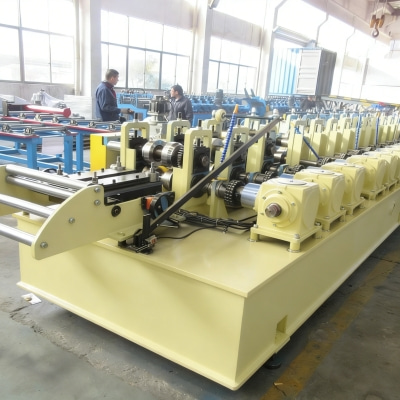

The High Performance Shelf Box Panel Making Machine is a professional automated production equipment engineered for manufacturing high-precision, high-strength shelf box panels. As a core device in the high-end storage shelf manufacturing industry, it integrates decoiling, feeding, precision punching, continuous roll forming, and high-precision cutting into a seamless workflow. Equipped with advanced intelligent control technology and high-performance core components, this machine ensures stable, efficient, and consistent mass production of shelf box panels, perfectly meeting the demanding requirements of industrial warehouses, logistics distribution centers, and high-end commercial storage facilities. It is highly recognized by global storage equipment manufacturers for its reliable operation, superior performance, and strong customization capabilities.
Core Technical Specifications
-
Raw material: Cold-rolled steel, Galvanized steel (optional stainless / color-coated steel)
-
Material thickness: 1.5 – 3.0 mm
-
Roller material: GCr15 (or optional Cr12) alloy steel, heat treated (quenched / hardened)
-
Roller hardness: HRC 58 – 62° (depending on heat treatment)
-

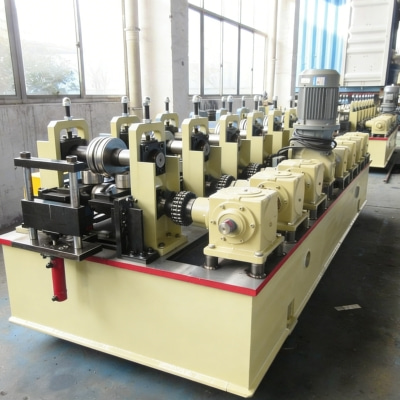

Number of forming stations: 16 – 28 stations (profile dependent)
-
Forming (line) speed: 5 – 15 m/min (depending on profile & configuration)
-
Main motor power: 15 – 22 kW (depending on model)
-
Cutting / Shearing system: Hydraulic cutting (or saw-cut); cutting blades made of heat-treated Cr12 / Cr12MoV
-
Control system: PLC control (Siemens / Panasonic / Delta optional) — supports automatic forming, punching, cutting, length & quantity control
-
Decoiler: Manual or hydraulic decoiler (capacity configurable, e.g. 3t–5t)
-
Material width: As per customer’s profile drawing / specification
-
Profile types: Upright rack columns / shelf upright posts / pallet rack uprights / warehouse shelving uprights
-
Power supply / Voltage: 380 V, 50 Hz, three-phase (customizable per customer requirement)
Safety & Quality Assurance
All components of the High Performance Shelf Box Panel Making Machine undergo strict quality inspection and performance testing before leaving the factory, complying with international industrial safety and quality standards. The machine has obtained authoritative certifications such as CE, ISO9001:2015, SGS, and TUV Rheinland, providing customers with reliable quality guarantees. The full-process safety protection system covers every link of production, effectively avoiding production accidents and ensuring the safety of operators and production sites.
Global One-Stop Service
Pre-sales Consulting
We provide multilingual technical support (English, German, Russian, Spanish, Arabic), on-site factory layout planning, and customized production solutions based on customers' specific shelf box panel drawings, material requirements, production scales, and regional power standards.
Sales Support
Professional packaging is adopted to prevent equipment damage during transportation. We provide complete industrial equipment customs clearance documents and arrange professional engineers for on-site installation, commissioning, and debugging. Systematic training on machine operation, maintenance, and quality control is provided for customer teams to ensure proficient use.
After-sales Service
24/7 online technical assistance is available to solve customers' problems in a timely manner. On-site maintenance support is provided within 48 hours in key regions. We offer a long-term warranty for core components of the machine, provide lifelong maintenance guidance, and free software upgrade services to ensure the continuous and stable operation of the equipment.
Typical Applications
-

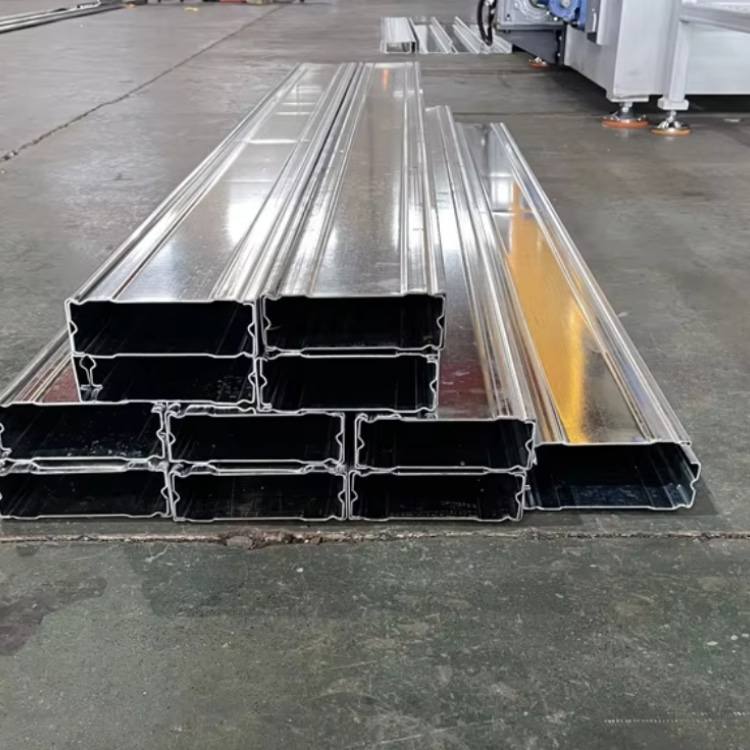

Production of high-performance shelf box panels for heavy-duty industrial storage shelves
-
Manufacturing of precision shelf box panels for logistics distribution centers
-
Customized production of high-strength shelf box panels for high-end commercial storage facilities
-
Production of special environment (cold-chain, chemical) resistant shelf box panels for special industries
