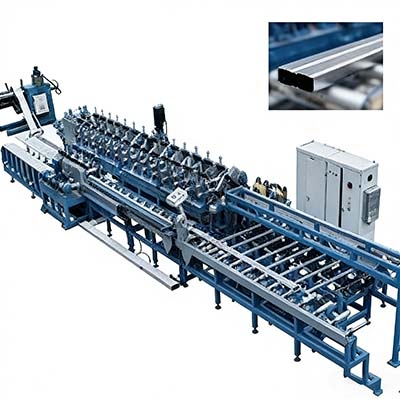

Automatic Storage Rack Beam Roll Forming Machine Line

Product Introduction — Rack-Box Beam Roll Forming Machine Line

Overview
The Rack-Box Beam Roll Forming Machine is engineered to produce robust box-type beams — a core component in storage rack systems for warehouses, supermarkets, distribution centers, and industrial storage. The machine converts steel coils into strong load-bearing beams without welding, ensuring seamless structural integrity and clean profiles.

Key Features

• Adjustable forming speed from 10 m/min to 20 m/min, tailored to your production needs.

• Supports multiple beam dimensions: e.g. height 40 mm with widths of 85 / 100 / 125 mm, or height 50 mm with widths from 80 mm up to 300 mm. Custom sizes available per customer design.

• Size adjustments are made via servo-motor controlled aperture, simple to adjust when material is unloaded.

• Length and dimension settings are adjusted through a user-friendly control cabinet screen (electrical panel) for easy operation.

• Compatible materials: cold-rolled steel, galvanized steel, PPGI, carbon steel, stainless steel, aluminum — with sheet thickness range from 1.5 mm to 2.0 mm.

• Because beams are roll-formed rather than welded, quality is consistent and structural strength is maintained across the entire beam length.



Benefits

• Produces high-strength rack beams essential for load-bearing in rack systems.

• Flexible dimensions and customizable designs to match your storage requirements.

• Automated, efficient process — reduces labor and production time while ensuring uniform quality.

• Easy operation and maintenance, with control systems available in English and Spanish for global customers.

Application Scenarios

• Heavy-duty storage racks in warehouses and distribution centers.

• Supermarket shelving and retail storage units.

• Industrial storage systems, including pallets, crates, and high-density storage racks.

• Any custom shelving or racking system where load capacity, durability, and precision are essential.

Customization & Service
We welcome custom design requests — provide your required beam dimensions, material specifications, and load requirements. Our team will design and supply a tailored roll forming solution to fit your needs. Manuals and control interfaces are available in both English and Spanish to support efficient operation and safe use.

Why Choose This Machine
The Rack-Box Beam Roll Forming Machine offers a complete, high-quality solution for producing essential structural beams for rack systems — combining flexibility, strength, automation, and ease of use. It’s ideal for manufacturers who want to optimize production efficiency and deliver reliable, consistent rack components for storage applications.
