Product Overview

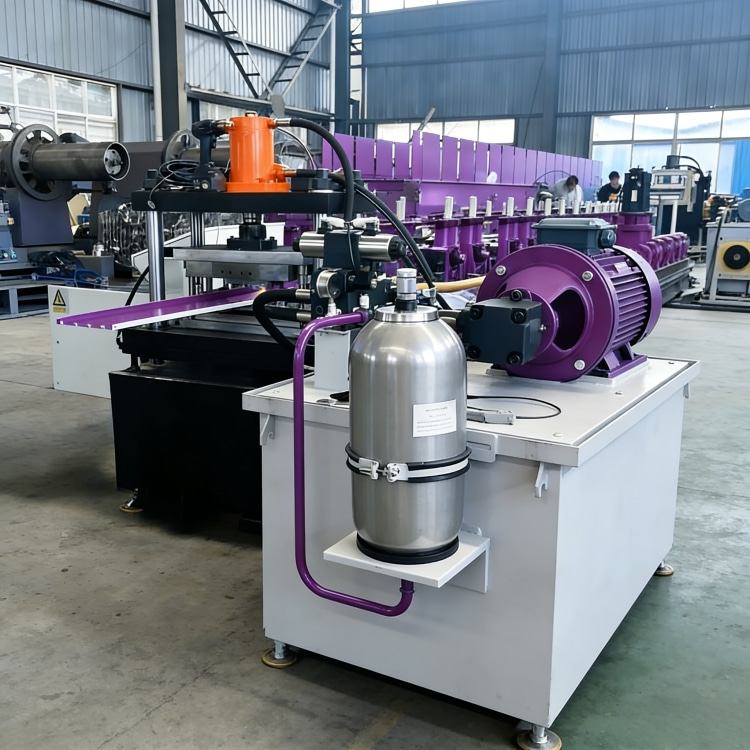

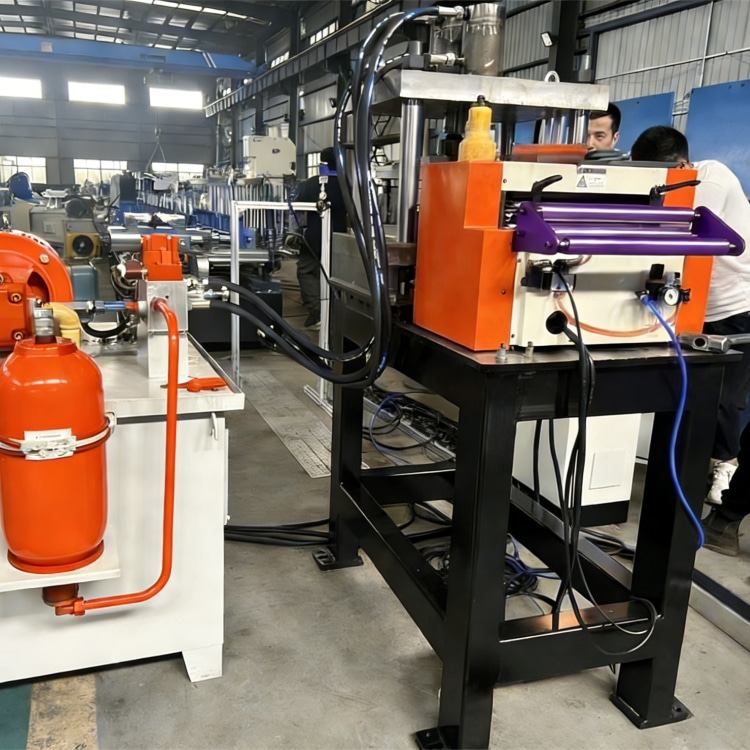

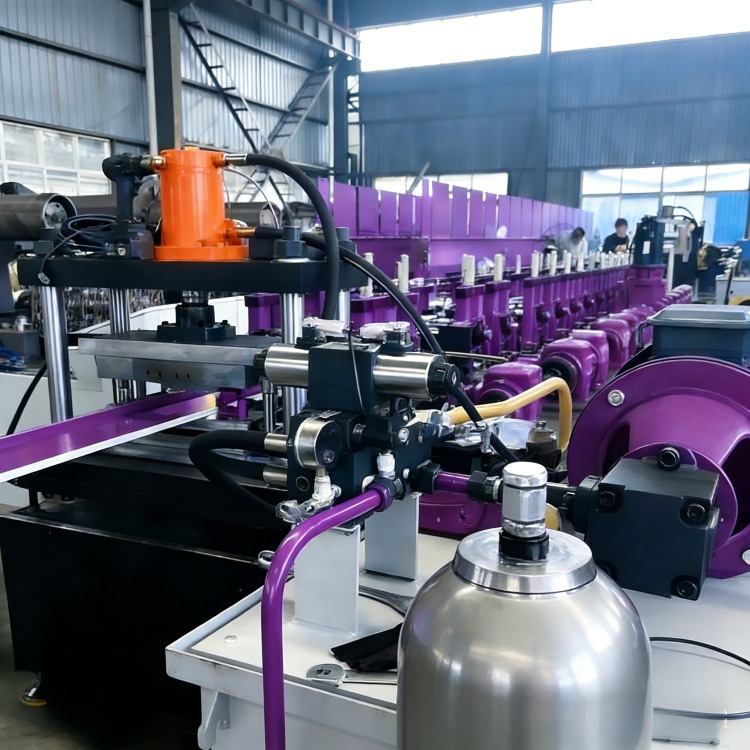

The Rack Shelf Roll Forming Machine is a specialized automated production system designed for manufacturing high-precision rack shelves, a key component in retail storage, industrial warehouses, and logistics distribution networks. This integrated equipment combines precise forming technology, efficient punching-cutting integration, and intelligent control, enabling stable mass production of high-quality shelves. It has won wide trust from global shelf manufacturers due to its outstanding production efficiency and reliable operational performance.
Core Technical Specifications
-
Model number: Rack Shelf Roll Forming Machine
-
Thickness: 0.7-1.2mm, compatible with mainstream shelf raw materials to meet diverse application needs
-
Product speed: 6-8m/min with punching and cutting time, one minute can produce 2 shelves, realizing efficient integrated production
-

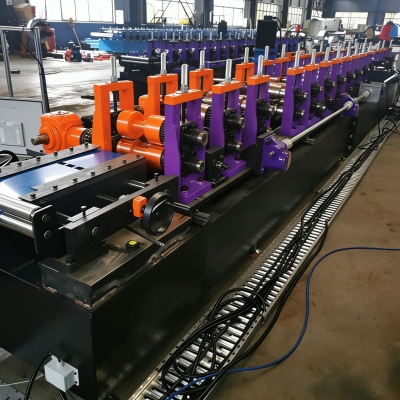

Roller Stations: About 15 stations, ensuring uniform forming, smooth shelf surfaces and accurate dimensional precision
-
Roller Material: Gcr15 Steel with quenching, possessing excellent wear resistance and deformation resistance for long-term use
-
Shaft Material: 45# high quality steel, providing robust load-bearing capacity and stable power transmission
-
Material Of Cutting: CR12Mov with quench treatment, featuring high hardness and sharp cutting performance for smooth finished edges
-
Electronic control: PLC control with touch screen, enabling intuitive parameter setting and real-time production status monitoring
-
Weight: About 8 tons, ensuring stable operation during high-speed production and reducing equipment vibration
Key Product Advantages
1. High-Efficiency Integrated Production: With a production speed of 6-8m/min (including punching and cutting) and an output of 2 shelves per minute, the machine greatly improves production efficiency, effectively meeting large-batch order requirements.
2. Precise Forming Quality: Equipped with about 15 roller stations and quenched Gcr15 steel rollers, the machine ensures consistent dimensional accuracy of shelves, with excellent structural stability and assembly compatibility.
3. Stable & Durable Performance: Core components such as 45# high-quality steel shafts and CR12Mov quenched cutting tools are adopted, ensuring long-term stable operation, low failure rate, and reduced maintenance costs.
4. Intelligent & User-Friendly Operation: The PLC touch screen control system simplifies operation processes, allowing operators to complete production control with minimal training, improving work efficiency.
5. Strong Adaptability: Suitable for processing 0.7-1.2mm thick materials, the machine can produce various types of shelves, adapting to retail, industrial and logistics storage scenarios.
Safety & Quality Assurance
The machine is equipped with a comprehensive safety protection system, including emergency stop devices, safety guards, and real-time fault monitoring. It can automatically alarm and shut down in case of abnormalities, effectively ensuring operator safety and avoiding production accidents. All core components undergo strict quality inspection and performance testing before leaving the factory, ensuring the overall reliability and service life of the equipment.
Global Service Support
Pre-sales Consulting
We provide multilingual technical support (English, German, Russian, Spanish, Arabic), on-site factory layout planning, and customized solutions based on customers' specific product specifications and production scales.
Sales Support
Professional packaging is provided to prevent transportation damage, and complete customs clearance documents are supplied. Our engineers offer on-site installation, commissioning, and systematic training on operation and maintenance.
After-sales Service
24/7 online technical assistance is available, with on-site maintenance support within 48 hours in key regions. We provide long-term warranty for core components, lifelong maintenance guidance and free software upgrades.
Certifications
CE | ISO9001:2015 | SGS | TUV Rheinland
Typical Applications
-
Production of display shelves for supermarkets and retail stores
-
Manufacturing of storage shelves for industrial warehouses
-
Customized shelf production for office and household storage systems
-
Production of shelves for intelligent logistics distribution centers
