Shelf Panel Roll Forming Machine

Product Attributes :

Contact Person： XN Duan

Mobile Phone：18832797029

WhatsApp:+86 18832797029

E-mail:yuankuoduan@gmail.com

Add：Zhenggang Road, Industrial Development Zone, Botou City, Hebei Province

Product Description

From cold rolled steel to galvanized steel, the Shelf Panel Roll Forming Machine is designed to process a wide range of materials, adapting to the unique requirements of each application. It handles thicknesses from 0.8–1.50 mm and widths from 250–1000 mm, making it suitable for everything from lightweight retail shelves to heavy-duty industrial racks.

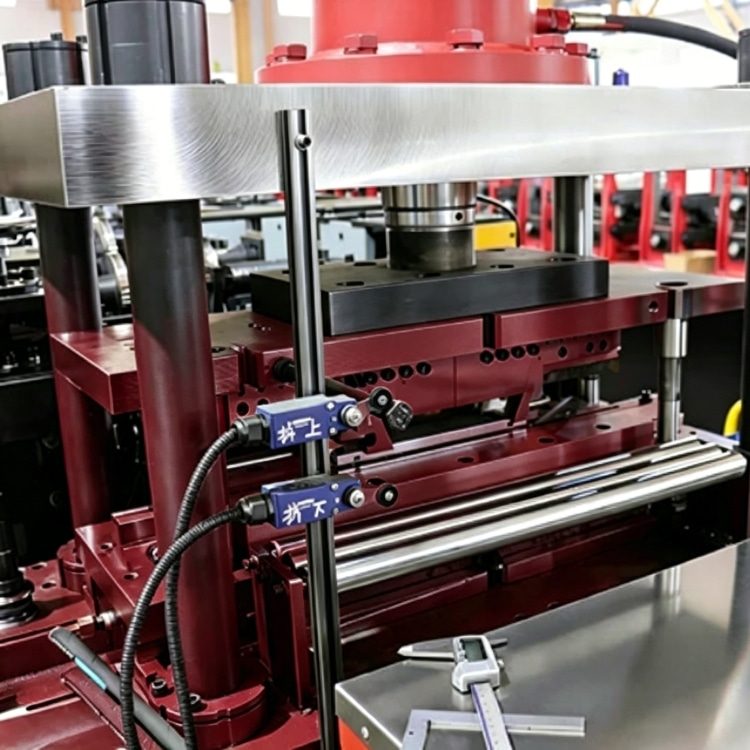

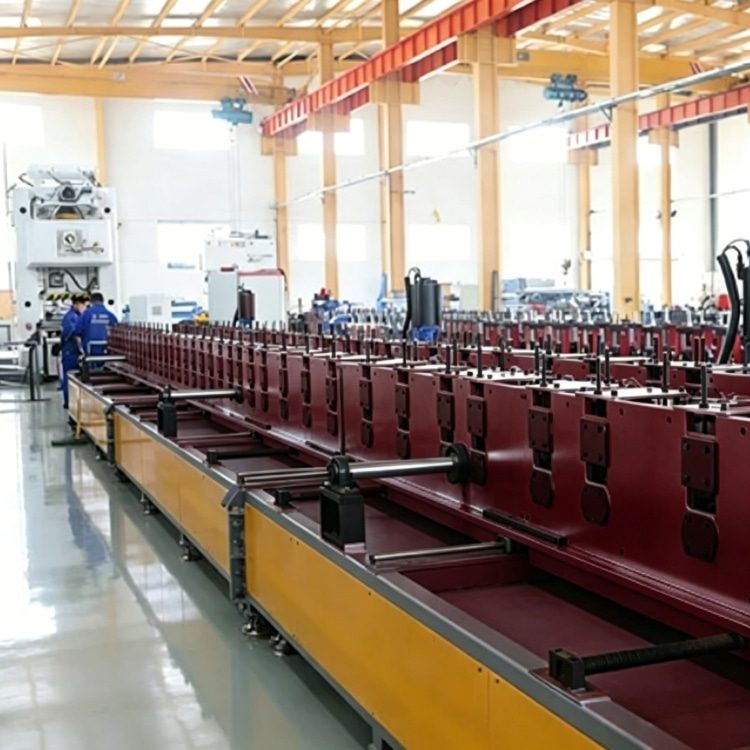

Shelf Panel Roll Forming Machine is professional industrial equipment for producing metal shelf panels. Adopting multi-station roller forming and PLC automatic control system, it features stable operation, high precision and high production speed. Suitable for manufacturing various metal shelf boards used in warehouse storage, supermarket shelves and logistics rack systems.

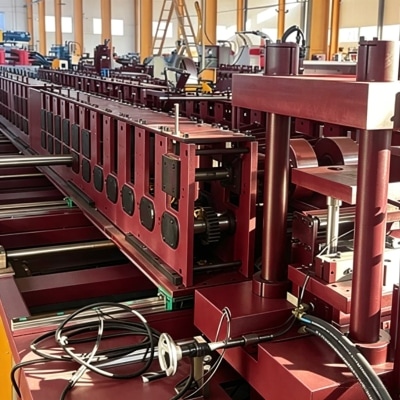

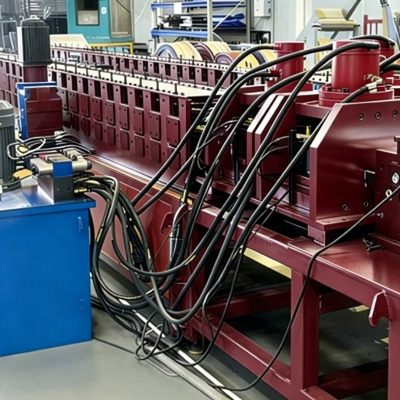

The forming section features 10–18 stations with hardened rollers, calibrated to handle different material hardnesses without causing damage or deformation. The PLC control system adjusts forming pressure and feed speed based on material type, ensuring consistent quality. Galvanized steel, often used for corrosion-resistant outdoor or humid environment shelving, is processed with care to avoid damaging the zinc coating, resulting in smooth, scratch-free surfaces.

Parameter	Specification
Machine Type	Shelf Panel Roll Forming Machine
Material Thickness	0.8 – 1.50 mm
Material Width	250– 1000 mm
Forming Stations	10 – 18 stations
Max Forming Speed	12 – 20 m/min
Decoiler	Manual / Hydraulic / Motorized
Cutting Method	Flying Cut / Hydraulic Shear
Drive System	Electric / PLC Control
Power	15 – 30 kW
Machine Dimensions (L×W×H)	8–12 m x 1.5 m x 1.8 m
Machine Weight	6 – 12 tons
Tolerance	±1 mm
Suitable Material	Cold Rolled Steel / Galvanized Steel
Optional Features	Automatic Punching,Stacking,Labeling

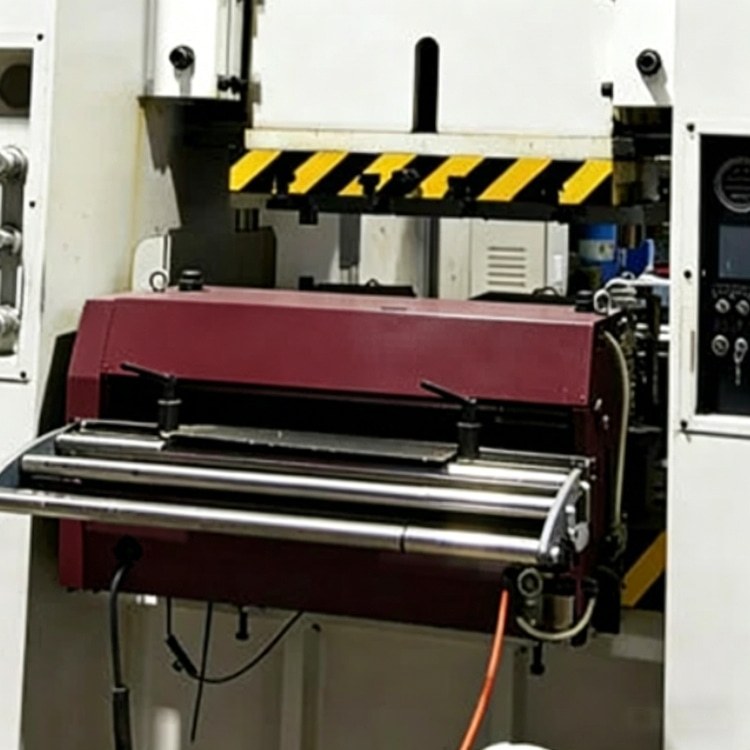

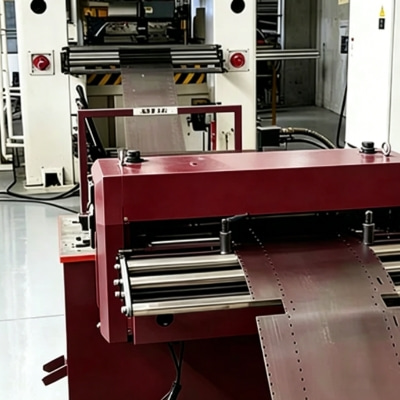

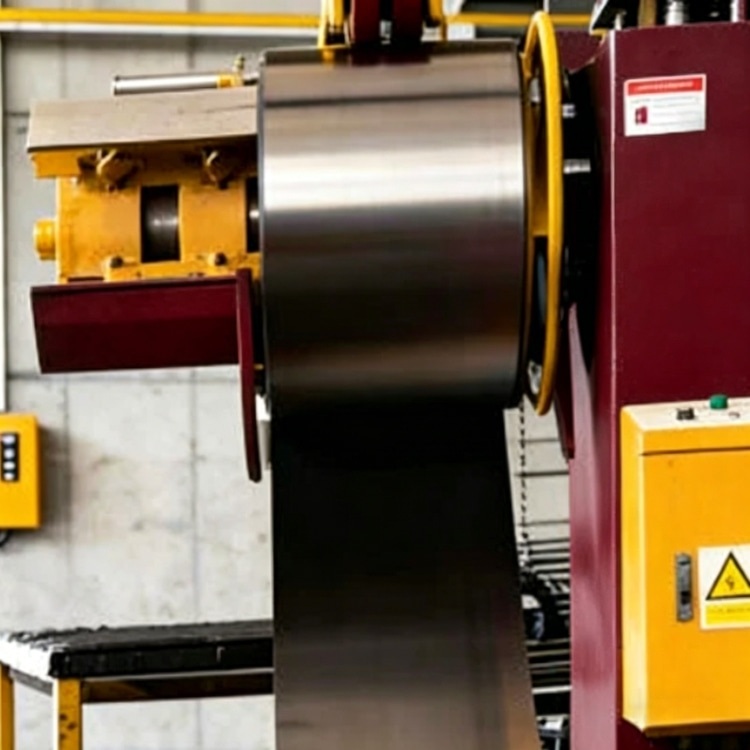

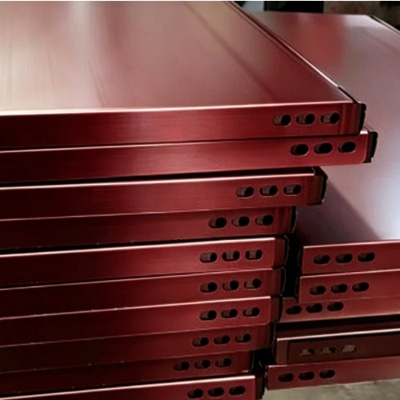

The decoller supports motorized feeding for large coils, while cutting options include flying cut and hydraulic shear, both delivering clean, burr-free edges. Optional features like automatic punching and stacking work with all material types, creating finished panels ready for assembly. With its material versatility, this machine allows manufacturers to expand their product lines without investing in additional equipment.
