The Shelf Rack Roll Forming Machine is a high-performance industrial equipment specifically designed for the mass production of high-quality shelf rack uprights, the core structural components of industrial, commercial, and warehouse storage systems. Engineered with precision and efficiency in mind, this machine integrates advanced technologies to eliminate manual errors, ensure consistent profile quality, and meet the growing demand for durable, reliable storage solutions across various industries. At its core, it features a PLC control system with a user-friendly touchscreen interface, allowing operators to easily set parameters, store production recipes, and monitor the entire forming process in real time, minimizing operational complexity and training time.

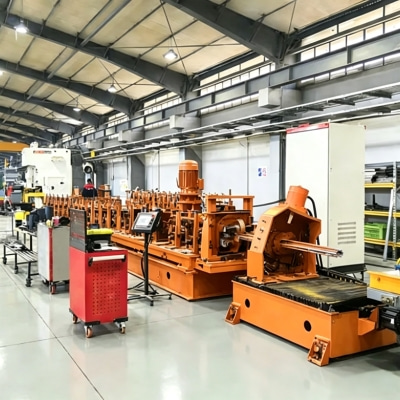

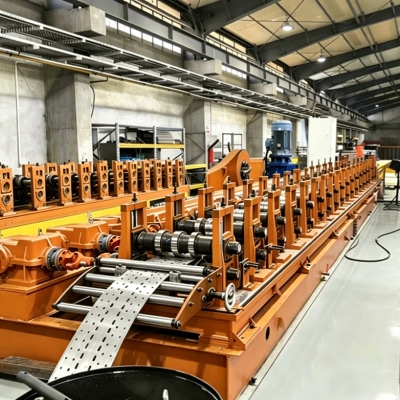

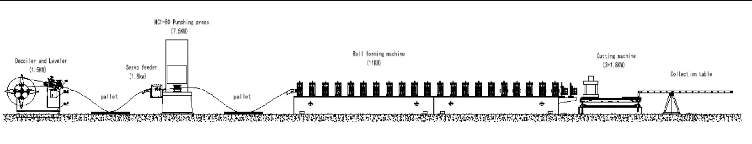

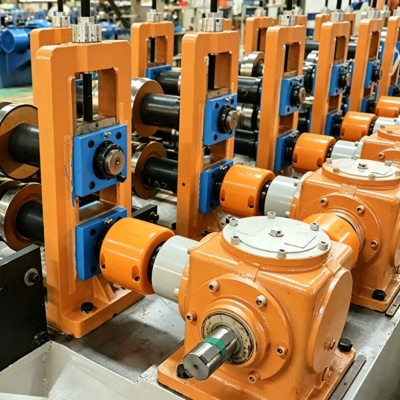

This machine is capable of processing a wide range of materials, including cold-rolled steel and galvanized steel, with customizable material thicknesses from 1.0 mm to 3.5 mm and material widths of 50 mm to 250 mm, making it versatile enough to produce uprights for light-duty retail shelves, medium-duty warehouse racks, and heavy-duty industrial storage systems. The forming section is equipped with 12 to 20 precision forming stations, each fitted with high-hardness tooling treated with heat treatment to ensure wear resistance and long service life. The servo-driven feeding system guarantees stable material feeding, maintaining a forming speed of 10 m/min to 18 m/min while holding a dimensional tolerance of ±1 mm, critical for ensuring the structural integrity and seamless assembly of shelf racks.
|
Parameter
|
Specification
|
|
Machine Type
|
Shelf Rack Roll Forming Machine
|
|
Material Thickness
|
1.0 ~ 3.5 mm
|
|
Material Width
|
50 ~ 250 mm
|
|
Forming Stations
|
12 ~ 20 stations
|
|
Max Forming Speed
|
10 ~ 18 m/min
|
|

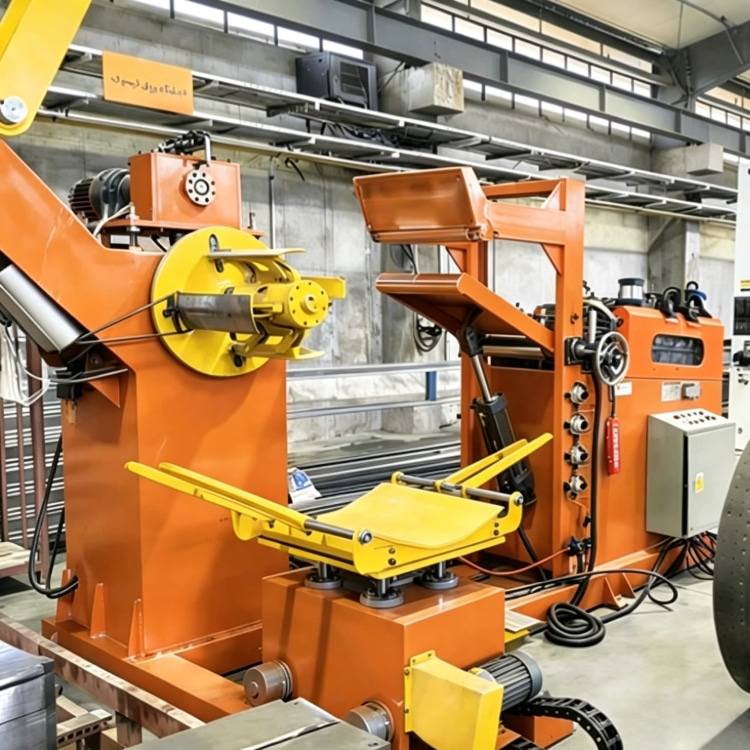

Decoiler
|
Manual / Hydraulic / Motorized
|
|
Cutting Method
|
Flying Cut / Hydraulic Shear
|
|
Drive System
|
Electric / PLC Control
|
|
Power
|
20 ~ 35 kW
|
|
Machine Dimensions (L×W×H)
|
10–14 m × 1.5 m × 1.8 m
|
|
Machine Weight
|
7 ~ 14 tons
|
|
Tolerance
|
±1 mm
|
|
Suitable Material
|
Cold Rolled Steel / Galvanized Steel
|
|
Optional Features
|
Automatic Punching,Stacking,Labeling
|

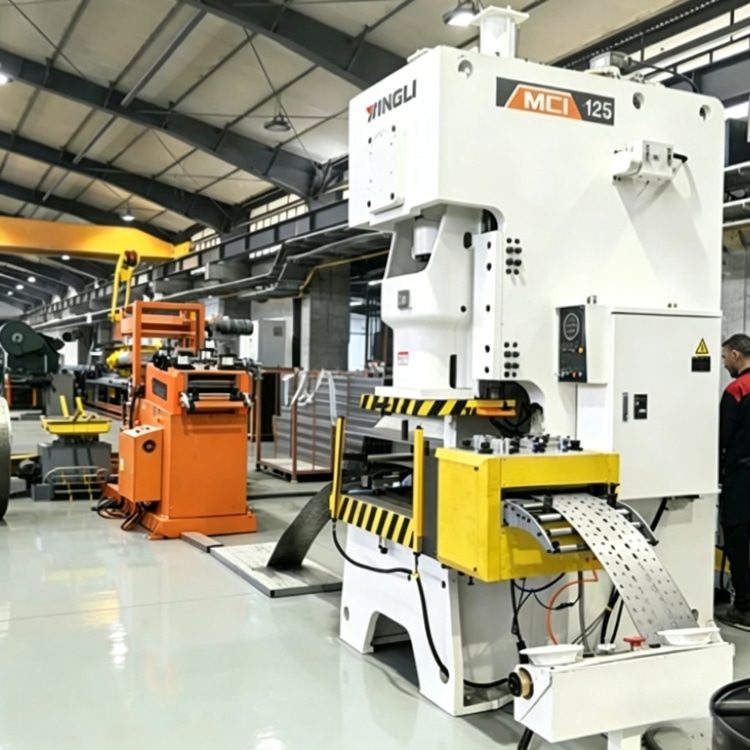

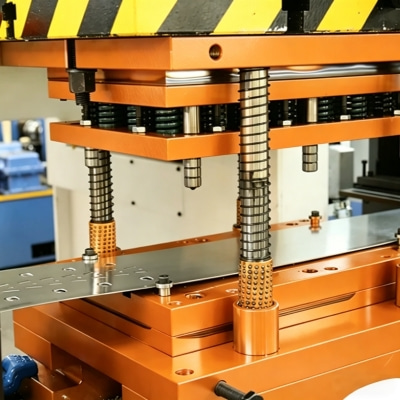

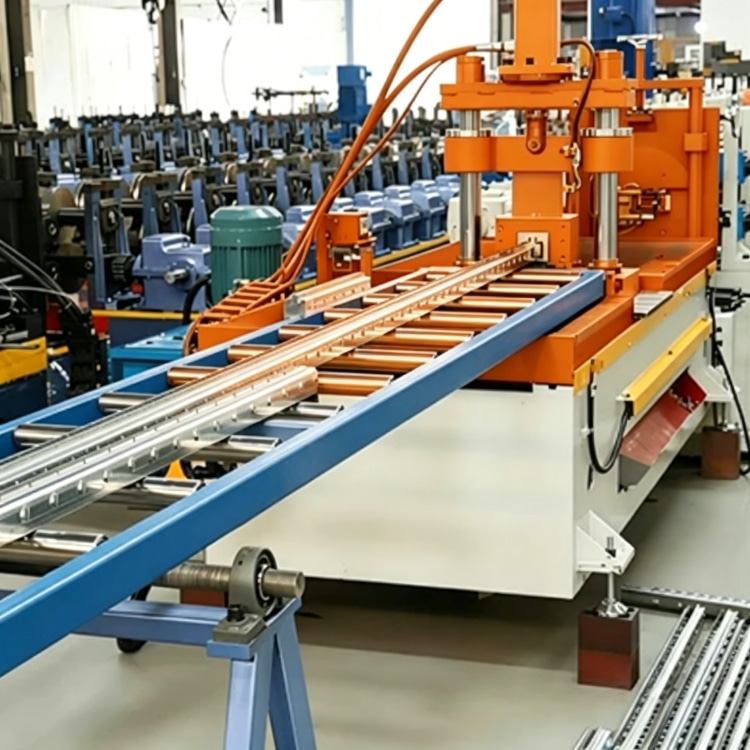

Built with a heavy-duty steel frame weighing 7 tons to 14 tons and measuring 10 m to 14 m in length, 1.5 m in width, and 1.8 m in height, the machine offers exceptional stability even during continuous high-volume production runs. It supports two cutting methods: optional flying cut for non-stop high-speed production and hydraulic shear cut for precise, burr-free edges, eliminating the need for secondary finishing operations. Optional automatic punching and stacking modules can be integrated to further streamline the workflow, reducing manual labor and increasing production efficiency. With its robust construction, advanced automation, and versatile performance, this Shelf Rack Roll Forming Machine is an indispensable asset for manufacturers looking to enhance productivity, ensure consistent quality, and gain a competitive edge in the storage system market.
