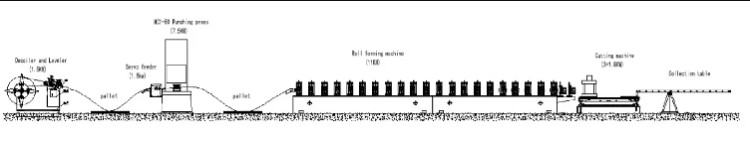

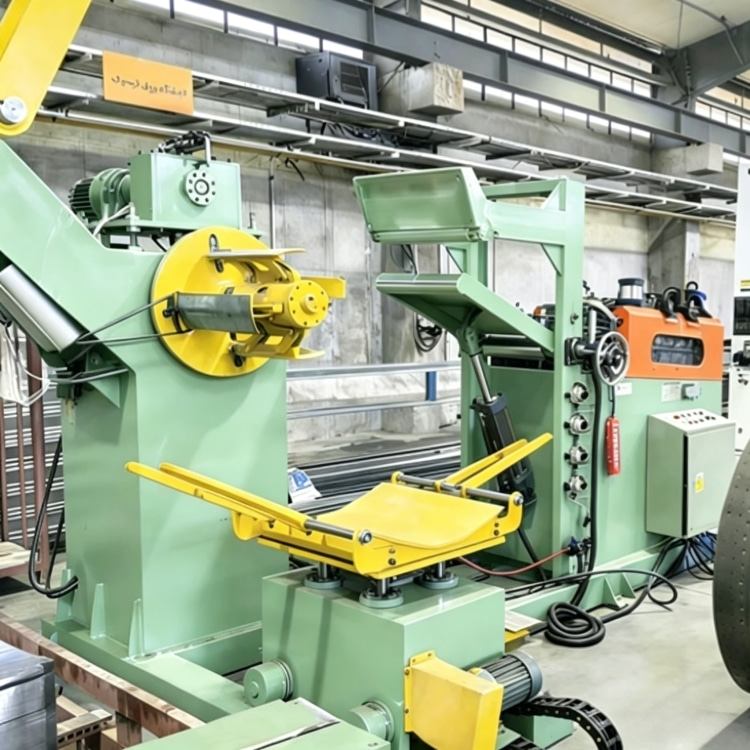

The Shelf Rack Roll Forming Machine integrates advanced automation technologies to streamline production workflows, reduce manual labor, and improve overall operational efficiency. At its core, the PLC control system serves as the brain of the machine, automating key processes such as material feeding, forming, cutting, and stacking, allowing operators to monitor and control the entire production line with minimal intervention. The touchscreen interface is intuitive and user-friendly, making it easy to set parameters, adjust production settings, and access production data, even for operators with limited technical experience.

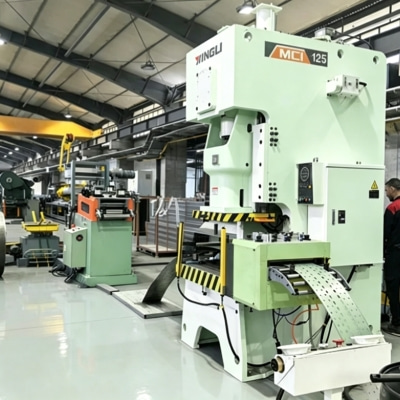

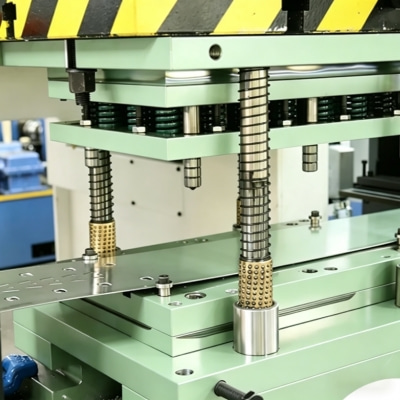

Optional automation modules further enhance the machine’s efficiency, including automatic coil loading, which eliminates the need for manual material handling and reduces the risk of injury. The automatic punching module allows for precise hole punching during the forming process, eliminating the need for secondary punching operations and ensuring that holes are accurately positioned with a tolerance of ±0.5 mm. The automatic stacking module collects finished profiles and stacks them neatly, reducing manual labor and ensuring that products are ready for packaging and shipping.
|
Parameter
|
Specification
|
|
Machine Type
|
Shelf Rack Roll Forming Machine
|
|
Material Thickness
|
1.0 ~ 3.5 mm
|
|
Material Width
|
50 ~ 250 mm
|
|
Forming Stations
|
12 ~ 20 stations
|
|
Max Forming Speed
|
10 ~ 18 m/min
|
|
Decoiler
|
Manual / Hydraulic / Motorized
|
|
Cutting Method
|
Flying Cut / Hydraulic Shear
|
|
Drive System
|
Electric / PLC Control
|
|
Power
|
20 ~ 35 kW
|
|
Machine Dimensions (L×W×H)
|
10–14 m × 1.5 m × 1.8 m
|
|
Machine Weight
|
7 ~ 14 tons
|
|
Tolerance
|
±1 mm
|
|
Suitable Material
|
Cold Rolled Steel / Galvanized Steel
|
|
Optional Features
|
Automatic Punching,Stacking,Labeling
|

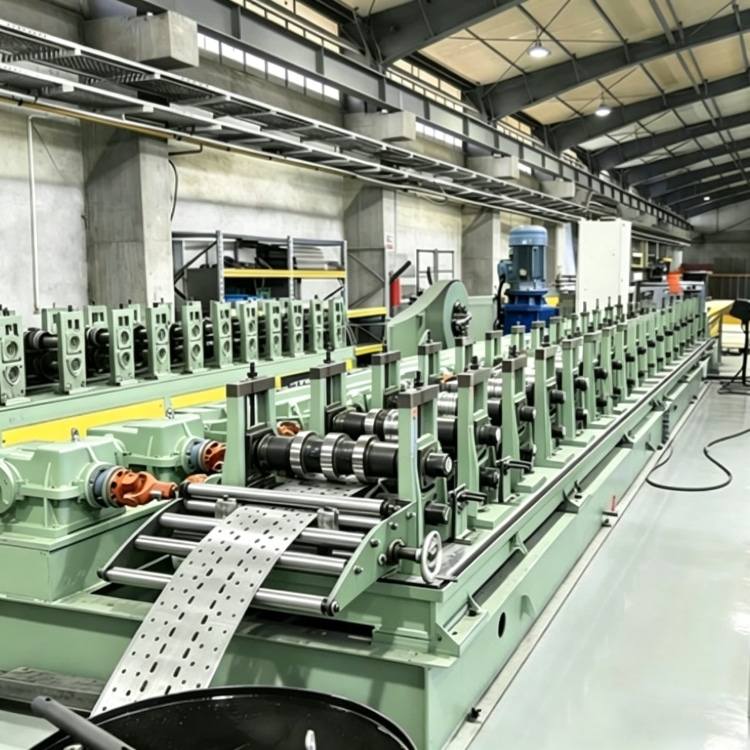

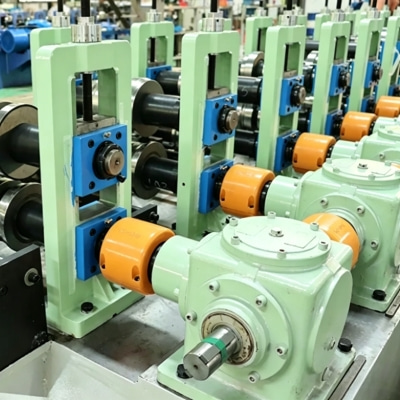

The machine’s servo-driven systems, including the feeding and forming systems, ensure precise control and consistent performance, with a forming speed of 10 m/min to 18 m/min and dimensional tolerance of ±1 mm. The 12 to 20 forming stations are designed to work in harmony with the automation system, ensuring smooth, efficient forming without material waste or errors. The machine’s compact design, with a length of 10 m to 14 m, allows for easy integration into existing production lines, while its energy-efficient power system (20 kW to 35 kW) reduces operational costs. For manufacturers looking to automate their production processes and improve efficiency, this Shelf Rack Roll Forming Machine offers a comprehensive, user-friendly solution that delivers consistent quality and high productivity.
