The Shelf Rack Roll Forming Machine offers flexible customization options, allowing manufacturers to tailor the machine to their specific production needs and create custom shelf rack uprights for specialized storage applications. Its modular design allows for easy integration of optional modules, such as automatic punching, labeling, and stacking, enabling manufacturers to create a fully customized production line that meets their unique requirements. The machine’s PLC control system can store up to 50+ production recipes, allowing for quick and easy switching between different profile designs, from standard C-shaped uprights to complex multi-bend profiles.

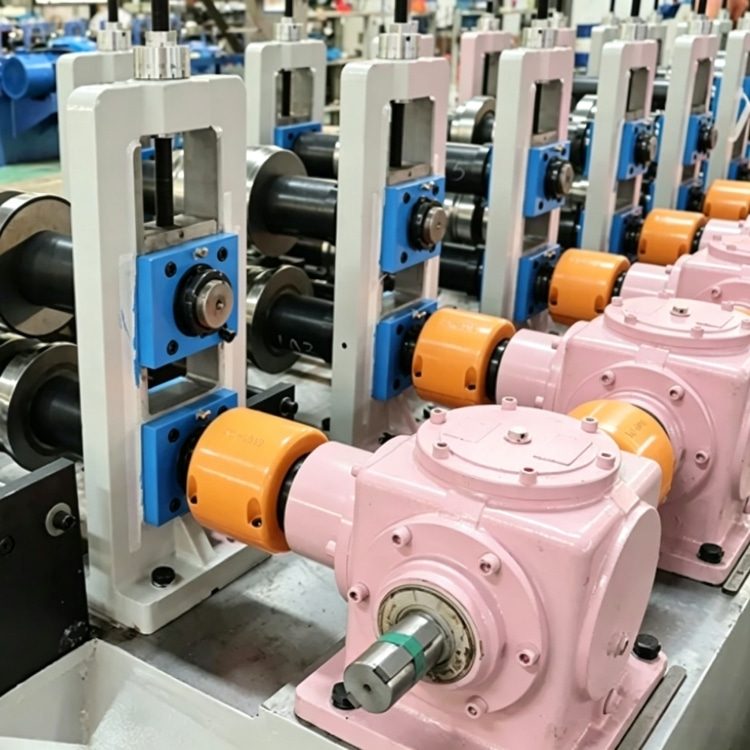

The forming tooling is interchangeable, making it easy to modify the machine to produce different profile sizes and geometries without the need for expensive equipment replacements. The machine can handle material widths from 50 mm to 250 mm and thicknesses from 1.0 mm to 3.5 mm, allowing for customization of upright size and strength to meet the specific load requirements of different storage systems. The optional flying cut or hydraulic shear cutting methods can be adjusted to produce different cut lengths, from short uprights for retail shelves to long uprights for high-rise warehouse racks.
|
Parameter
|
Specification
|
|
Machine Type
|
Shelf Rack Roll Forming Machine
|
|
Material Thickness
|
1.0 ~ 3.5 mm
|
|
Material Width
|
50 ~ 250 mm
|
|
Forming Stations
|
12 ~ 20 stations
|
|
Max Forming Speed
|
10 ~ 18 m/min
|
|

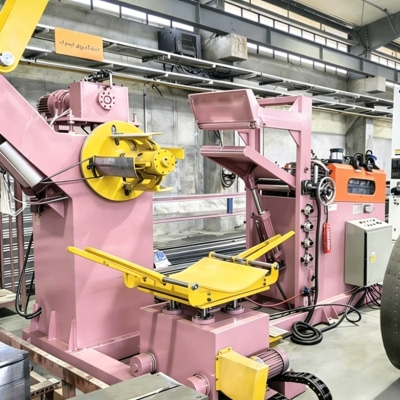

Decoiler
|
Manual / Hydraulic / Motorized
|
|
Cutting Method
|
Flying Cut / Hydraulic Shear
|
|
Drive System
|
Electric / PLC Control
|
|
Power
|
20 ~ 35 kW
|
|
Machine Dimensions (L×W×H)
|
10–14 m × 1.5 m × 1.8 m
|
|
Machine Weight
|
7 ~ 14 tons
|
|
Tolerance
|
±1 mm
|
|
Suitable Material
|
Cold Rolled Steel / Galvanized Steel
|
|
Optional Features
|
Automatic Punching,Stacking,Labeling
|

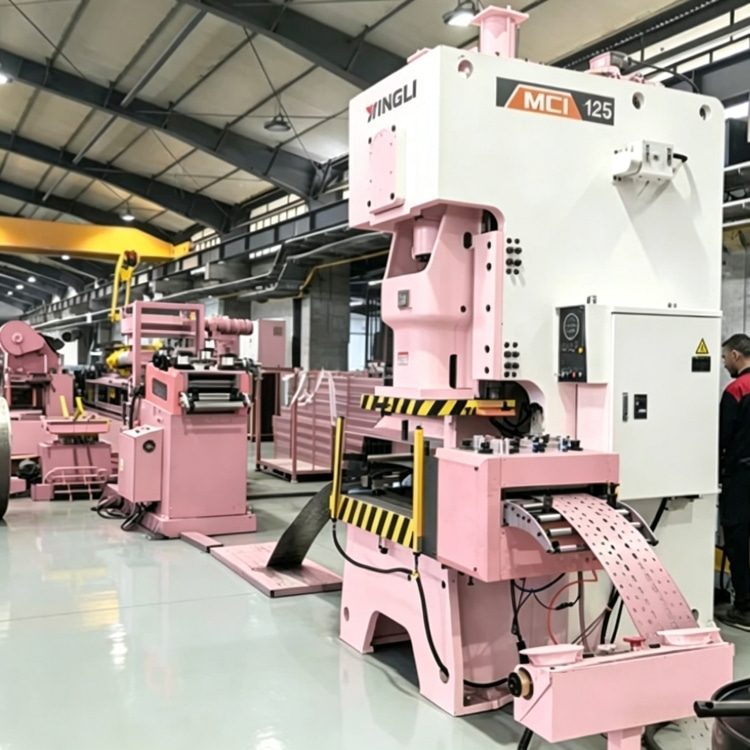

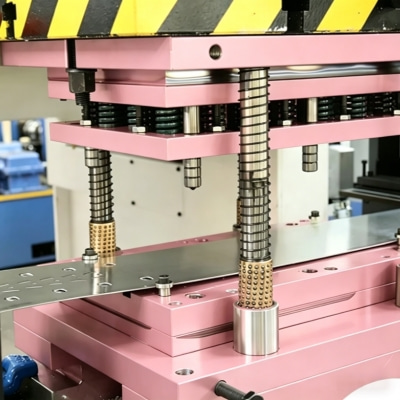

For manufacturers looking to produce custom uprights with unique features, such as specialized holes, notches, or bends, the machine’s automatic punching module can be customized to create precise holes in specific positions, with a tolerance of ±0.5 mm. The machine’s servo-driven systems ensure that custom profiles are produced with the same precision and consistency as standard profiles, ensuring quality and reliability. With its flexible customization options, this Shelf Rack Roll Forming Machine allows manufacturers to differentiate their products, meet specific customer needs, and expand their market reach.
