Product Overview

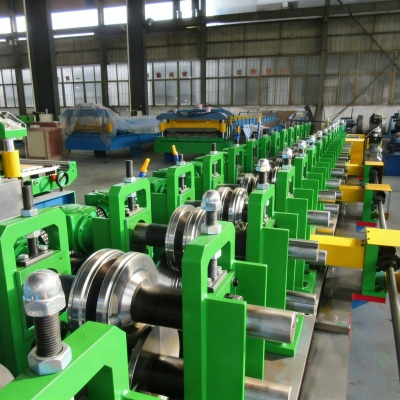

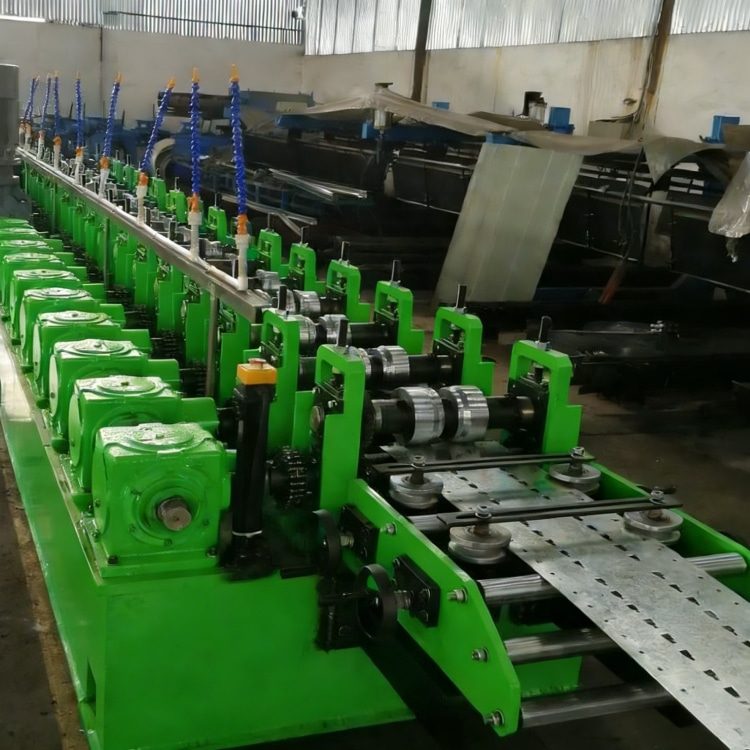

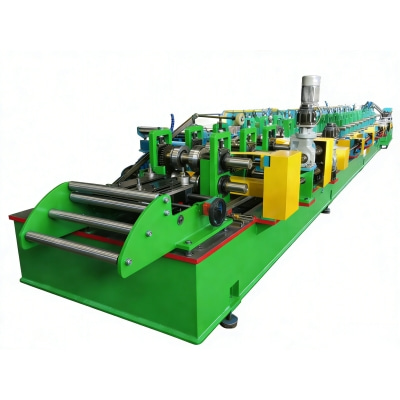

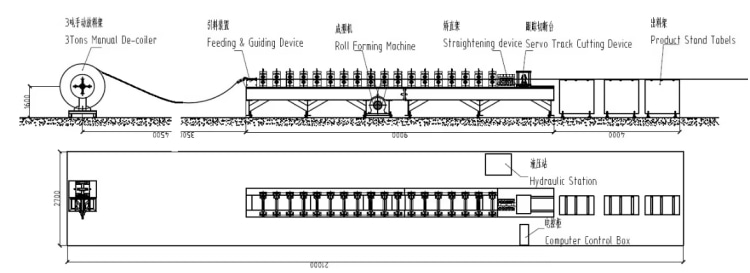

The Upright Rack Roll Forming Machine Production Line is an integrated automated manufacturing system dedicated to producing high-precision upright rack columns—core load-bearing components for industrial storage, logistics, and commercial shelving systems. It seamlessly integrates decoiling, feeding, punching, forming, and cutting processes, realizing one-stop continuous production. With advanced intelligent control and high-quality core components, this production line ensures efficient, stable, and high-standard output, making it a trusted solution for global storage rack manufacturers.
Core Technical Specifications
-
Raw material: Cold-rolled steel, Galvanized steel (optional stainless / color-coated steel)
-
Material thickness: 1.5 – 3.0 mm
-
Roller material: GCr15 (or optional Cr12) alloy steel, heat treated (quenched / hardened)
-
Roller hardness: HRC 58 – 62° (depending on heat treatment)
-

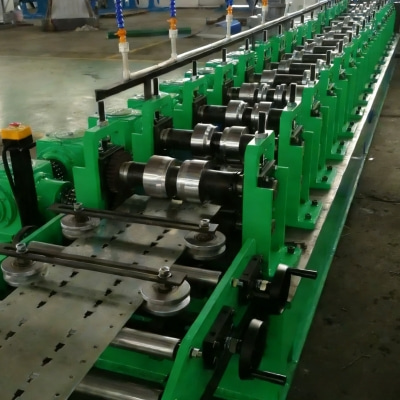

Number of forming stations: 16 – 28 stations (profile dependent)
-
Forming (line) speed: 5 – 15 m/min (depending on profile & configuration)
-

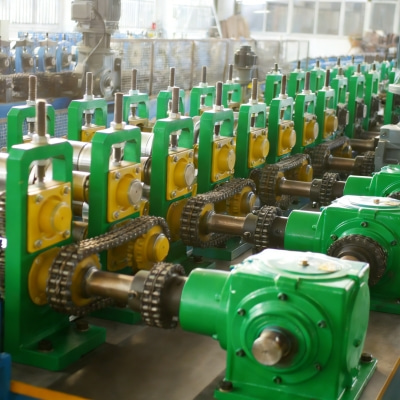

Main motor power: 15 – 22 kW (depending on model)
-
Cutting / Shearing system: Hydraulic cutting (or saw-cut); cutting blades made of heat-treated Cr12 / Cr12MoV
-
Control system: PLC control (Siemens / Panasonic / Delta optional) — supports automatic forming, punching, cutting, length & quantity control
-
Decoiler: Manual or hydraulic decoiler (capacity configurable, e.g. 3t–5t)
-
Material width: As per customer’s profile drawing / specification
-
Power supply / Voltage: 380 V, 50 Hz, three-phase (customizable per customer requirement)
Global One-Stop Service
Pre-sales Consulting
We provide multilingual technical support, on-site factory layout planning, and customized solutions based on customers' product drawings and production scale requirements.
Sales Support
Professional packaging and complete customs clearance documents are provided. Professional engineers are arranged for on-site installation, commissioning, and systematic operation and maintenance training.
After-sales Service
24/7 online technical assistance is available. On-site maintenance support is provided within 48 hours in key regions. Long-term warranty for core components, lifelong maintenance guidance, and free software upgrades are offered.
Typical Applications
-

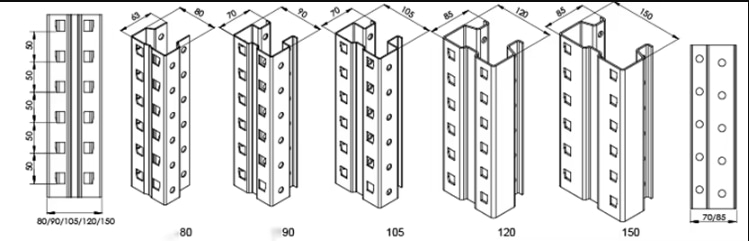

Heavy-duty industrial storage rack upright column production
-
Logistics distribution center pallet rack manufacturing
-
Commercial retail warehouse shelving production
-
Special environment (cold-chain, chemical) storage rack production
