Product Overview
The High Efficiency Customizable Racking Beam Roll Form Machine is an integrated automated production solution tailored for manufacturing high-precision, high-strength racking beams. As a core equipment for intelligent warehouses, industrial logistics hubs, and large-scale storage systems, it integrates advanced forming, welding and cutting technologies, realizing efficient and stable mass production. With strong customization capabilities, it can meet the diverse specifications requirements of racking beams from global customers, and has been widely recognized by professional rack manufacturers.

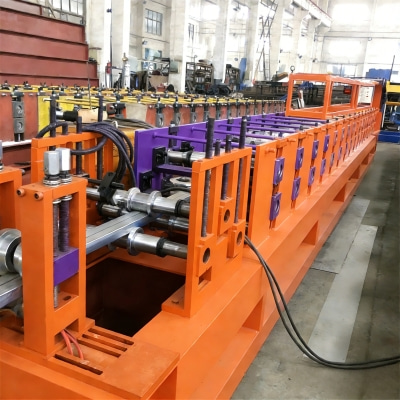

Production Line Composition

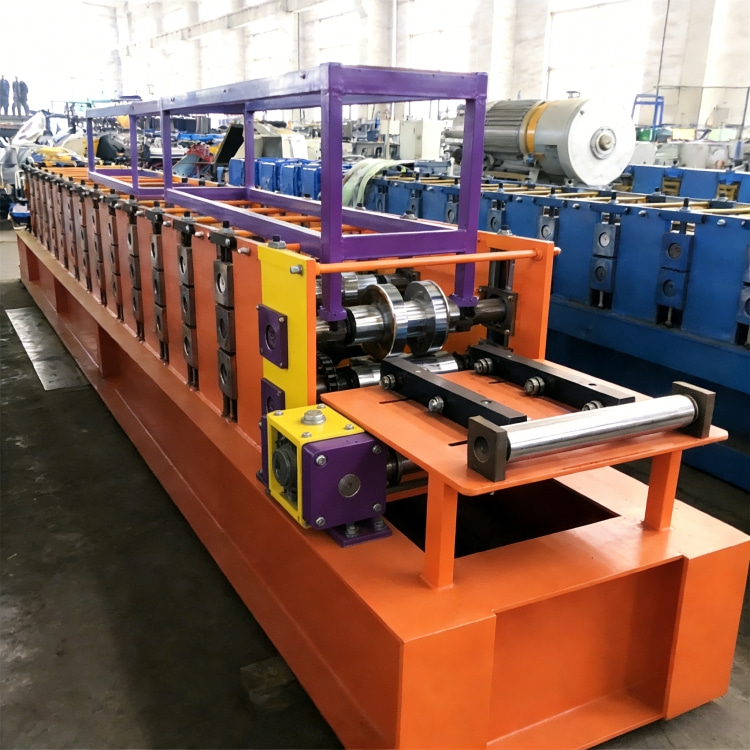

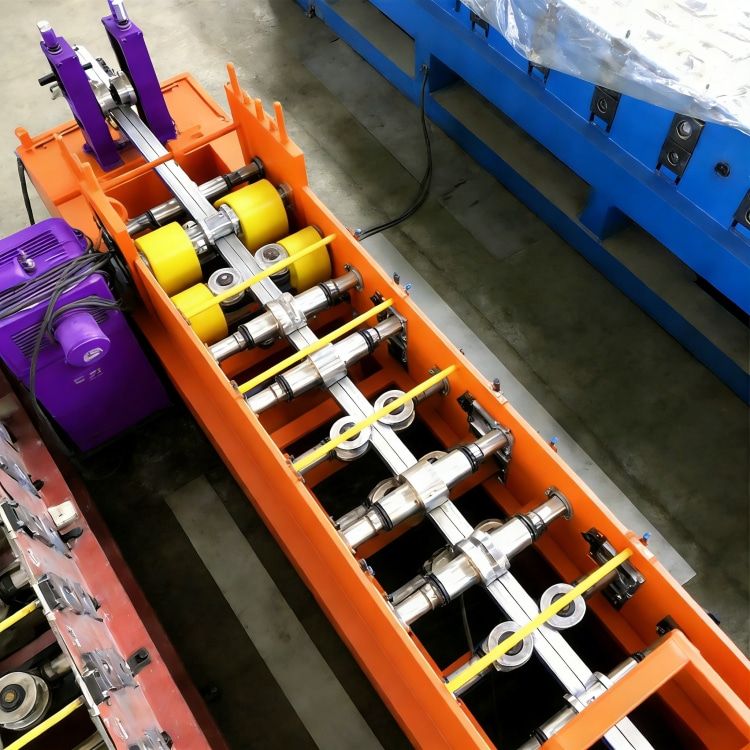

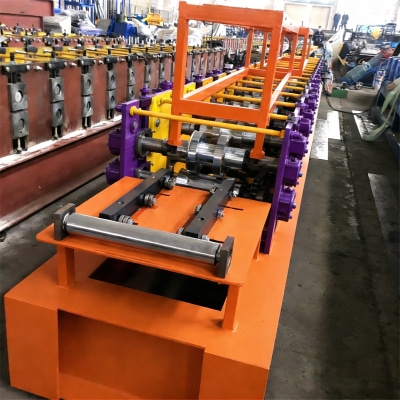

To ensure the integrity and automation of the production process, the overall production line is equipped with a full set of high-performance components, including decoiler, roll forming system, laser welding device, saw cutting system, electric control system, out tables, etc. Each module is precisely matched and seamlessly connected, covering the entire process from raw material uncoiling to finished product output, minimizing manual intervention and effectively improving production efficiency and product consistency.
Core Technical Specifications
-
Suitable Plate Material: thickness 1.5-2.0mm, Galvanized steel or blank steel
-
Working Speed: about 8-12 meters / min, achieving high-efficiency mass production while ensuring quality
-

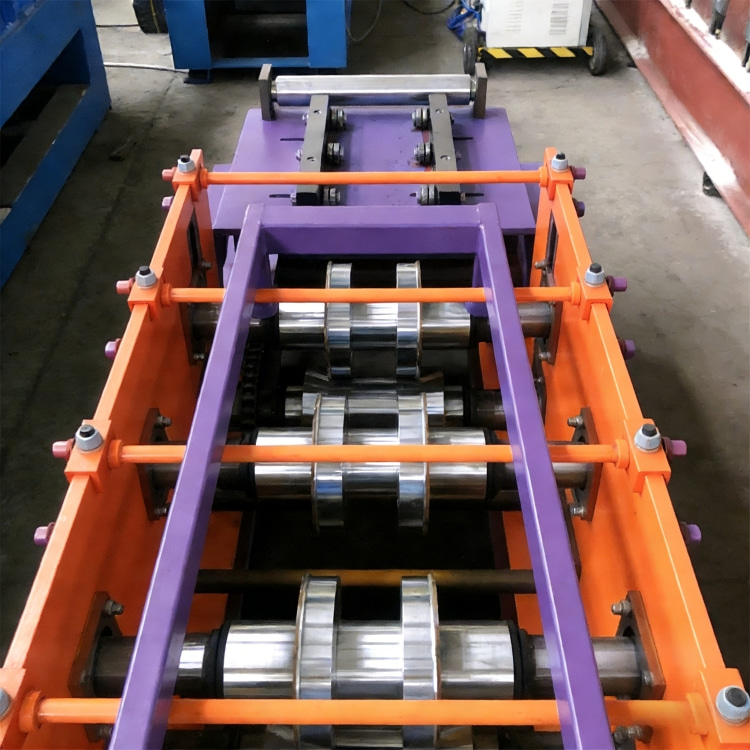

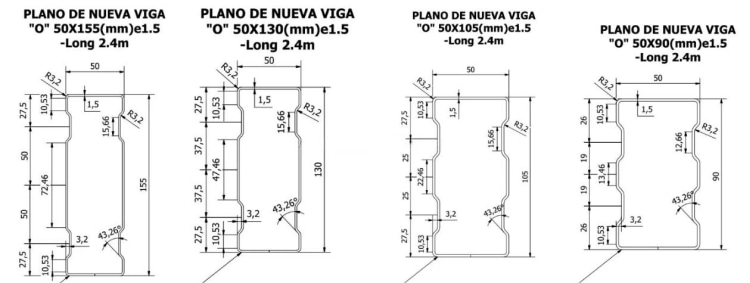

Forming Steps: about 22 stations, ensuring uniform and precise forming of racking beams, with excellent section shape and structural stability
-
Material of Roller:Gcr15, Quench HRC58-62 Plated Chrome, featuring superior wear resistance and deformation resistance, extending the service life of the equipment
-
Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining, providing strong load-bearing capacity and stable transmission performance
-
Driven system: Chain drive, ensuring stable power transmission, low noise and reliable operation
-
Main Power with reducer: 15KW WH Chinese Famous, providing sufficient and stable power support for continuous production
-

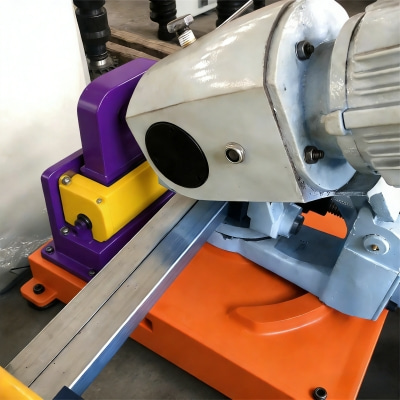

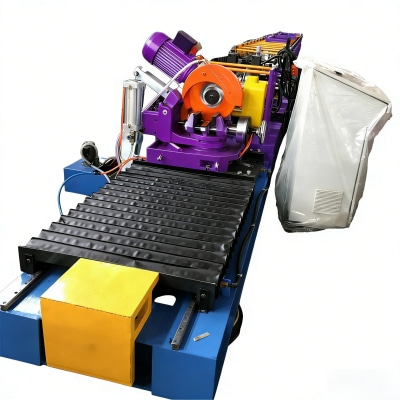

Cutting: Saw cutting, ensuring smooth cutting surface, high precision of length dimension and no burrs
-
Control System: The whole machine is controlled byindustry computer-PLC, equipped with Delta PLC (Japan) supporting English and Chinese Language, realizing intelligent operation and real-time production monitoring
-
Encoder: Omron (Japan), ensuring accurate control of working speed and forming position
-
Electric parts: Schneider, guaranteeing the stability, safety and long service life of the electrical system
-
The outline of the machine: about 20 meters*1.0meter*1.2 meters, with reasonable structure layout, saving factory space
Global One-Stop Service
Pre-sales Consulting
We provide multilingual technical support (English, German, Russian, Spanish, Arabic), on-site factory layout planning, and customized production solutions according to customers' specific product specifications, material characteristics and production scale.
After-sales Service
24/7 online technical assistance is available to solve customers' problems in a timely manner. On-site maintenance support is provided within 48 hours in key regions. We offer a long-term warranty for core components of the equipment, provide lifelong maintenance guidance and free software upgrade services, ensuring the continuous and stable operation of the production line.
Certifications
CE | ISO9001:2015 | SGS | TUV Rheinland
Typical Applications
-
High-strength racking beam production for intelligent pallet racking systems
-
Heavy-duty racking beam manufacturing for logistics center storage racks
-
Customized racking beam production for industrial warehouse storage systems
-
Racking beam production for cold-chain storage racks and chemical storage racks
