Fully Automatic Rack Box Beam Roll Forming Machine

The Box Beam Roll Forming Machine is a professional cold-forming solution developed for manufacturing shelf beam profiles used in modern storage and display systems. This equipment is specially designed to produce high-strength C-shaped box beams, which serve as one of the key load-bearing components in shelving structures. The finished beams are widely applied in warehouses, logistics centers, supermarkets, retail stores, shopping malls, and other commercial or industrial storage environments.

This roll forming line is part of a complete cold-formed shelving equipment system that can also produce shelf uprights, support braces, connecting struts, and steel laminates. By using roll-formed box beams, shelving systems achieve excellent load capacity, precise dimensions, and a clean, uniform appearance that meets both functional and visual requirements.

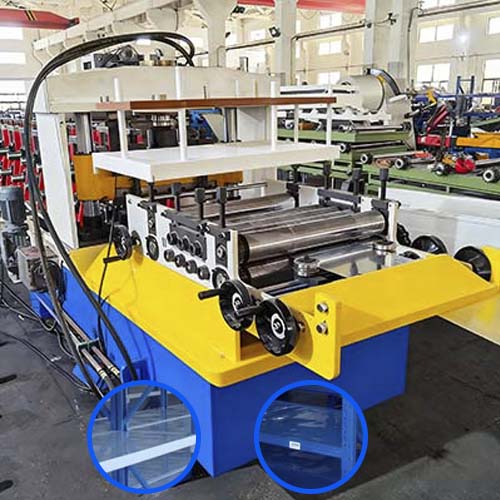

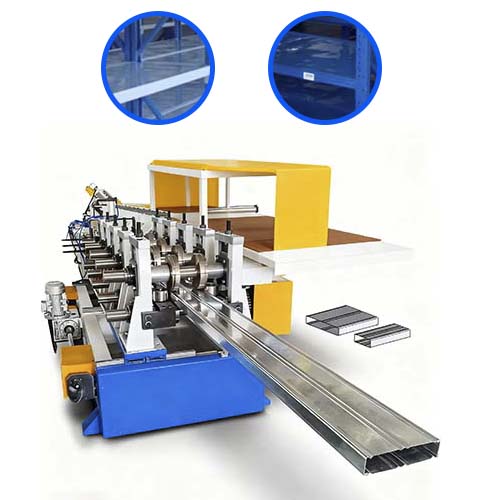

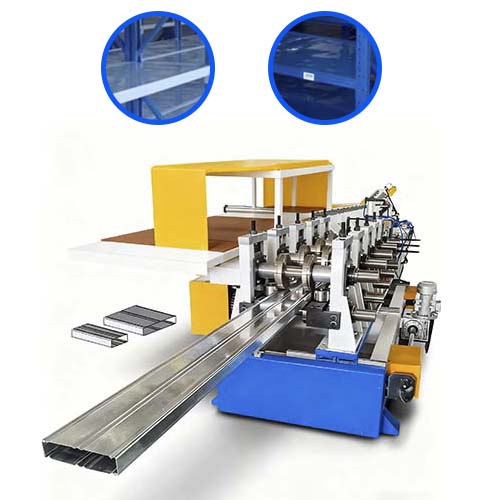

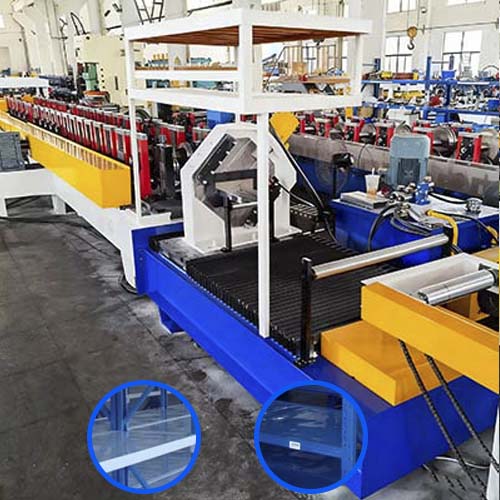

The machine operates through a fully automatic and continuous production process. Raw steel coils are first unwound and guided through a leveling unit to ensure flatness and stable feeding. The material then enters a high-speed punching system, where bottom holes or connection slots are accurately processed according to the required beam design. After punching, the strip passes through multiple roll forming stations that gradually shape it into a precise C-shaped box beam profile. Final sizing ensures dimensional accuracy before the finished beam is cut to length and transferred to the receiving table.

An advanced PLC control system with a touch screen interface allows operators to easily set production parameters such as beam length, punching positions, and batch quantities. The automated system reduces labor requirements while ensuring consistent quality and high production efficiency.

With a robust machine frame, stable operation, and flexible customization options, the Box Beam Roll Forming Machine is an ideal choice for manufacturers aiming to produce reliable shelf beam components and expand their capacity in the shelving and storage equipment industry.
