Shelf Panel Roll Forming Machine

Product Attributes :

Contact Person： XN Duan

Mobile Phone：18832797029

WhatsApp:+86 18832797029

E-mail:yuankuoduan@gmail.com

Add：Zhenggang Road, Industrial Development Zone, Botou City, Hebei Province

Product Description

Engineered for maximum flexibility, the Shelf Panel Roll Forming Machine is designed to adapt to the evolving needs of storage system manufacturers. It processes both cold rolled and galvanized steel, supporting thicknesses from 0.8–1.50 mm and widths spanning 250–1000 mm, allowing production of panels for everything from lightweight retail displays to heavy-duty warehouse racks. The forming section, with 10–18 stations, features interchangeable tooling to accommodate custom profiles, eliminating the need for multiple machines.

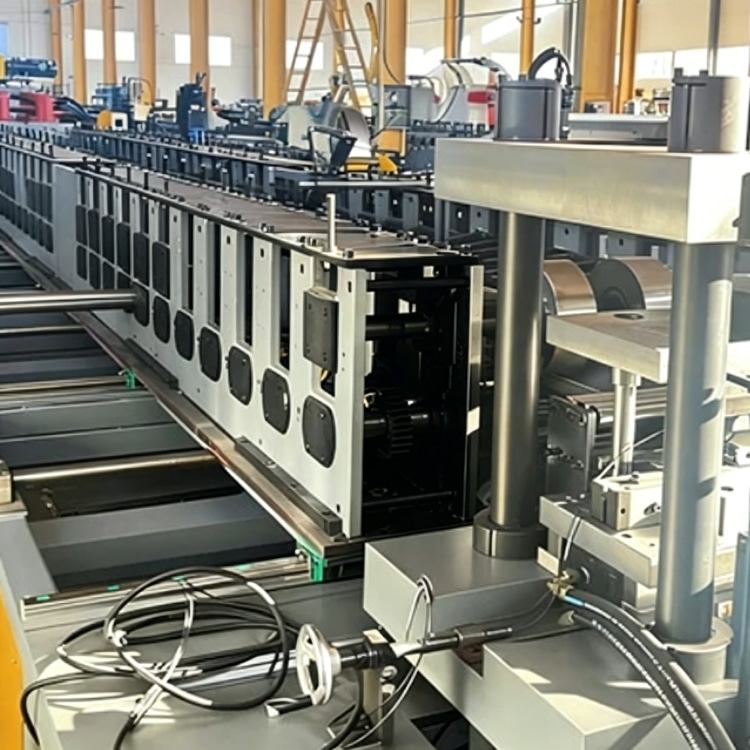

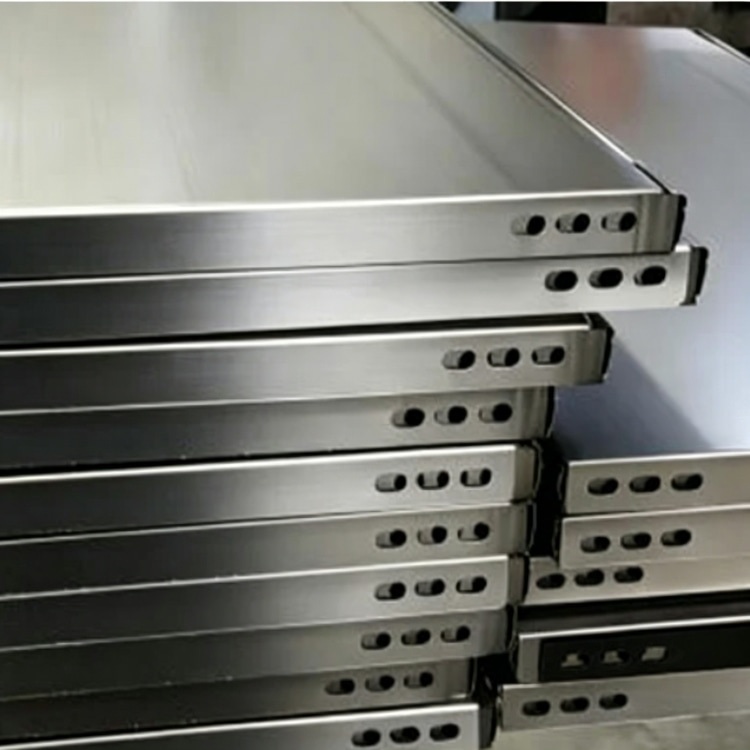

Shelf Panel Roll Forming Machine is professional industrial equipment for producing metal shelf panels. Adopting multi-station roller forming and PLC automatic control system, it features stable operation, high precision and high production speed. Suitable for manufacturing various metal shelf boards used in warehouse storage, supermarket shelves and logistics rack systems.

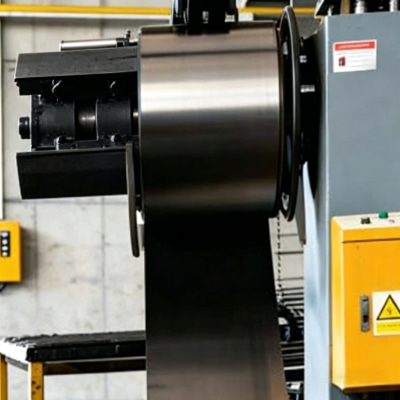

At the core of its versatility is the PLC control system, which stores dozens of production recipes for quick profile changes. The decoller’s three operation modes—manual, hydraulic, and motorized—adapt to varying coil weights and production scales, from small-batch custom orders to large-scale runs. Cutting options include flying cut for high-speed continuous production and hydraulic shear for precision cuts, both maintaining a tolerance of ±1 mm.

Parameter	Specification
Machine Type	Shelf Panel Roll Forming Machine
Material Thickness	0.8 – 1.50 mm
Material Width	250– 1000 mm
Forming Stations	10 – 18 stations
Max Forming Speed	12 – 20 m/min
Decoiler	Manual / Hydraulic / Motorized
Cutting Method	Flying Cut / Hydraulic Shear
Drive System	Electric / PLC Control
Power	15 – 30 kW
Machine Dimensions (L×W×H)	8–12 m x 1.5 m x 1.8 m
Machine Weight	6 – 12 tons
Tolerance	±1 mm
Suitable Material	Cold Rolled Steel / Galvanized Steel
Optional Features	Automatic Punching,Stacking,Labeling

Powered by a 15–30 kW drive system, the machine balances energy efficiency with robust performance. Its heavy-duty construction, weighing 6–12 tons, absorbs vibrations during high-speed forming, ensuring consistent quality. Optional features like automatic punching, stacking, and labeling can be added to tailor the line to specific workflows, whether producing pre-punched panels for quick assembly or labeled parts for traceability. This adaptability makes the machine ideal for manufacturers serving diverse markets, from local retailers to global industrial clients.
